N沟道 40V 100A

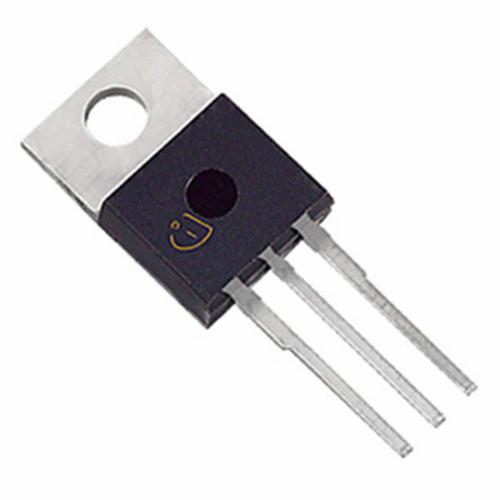

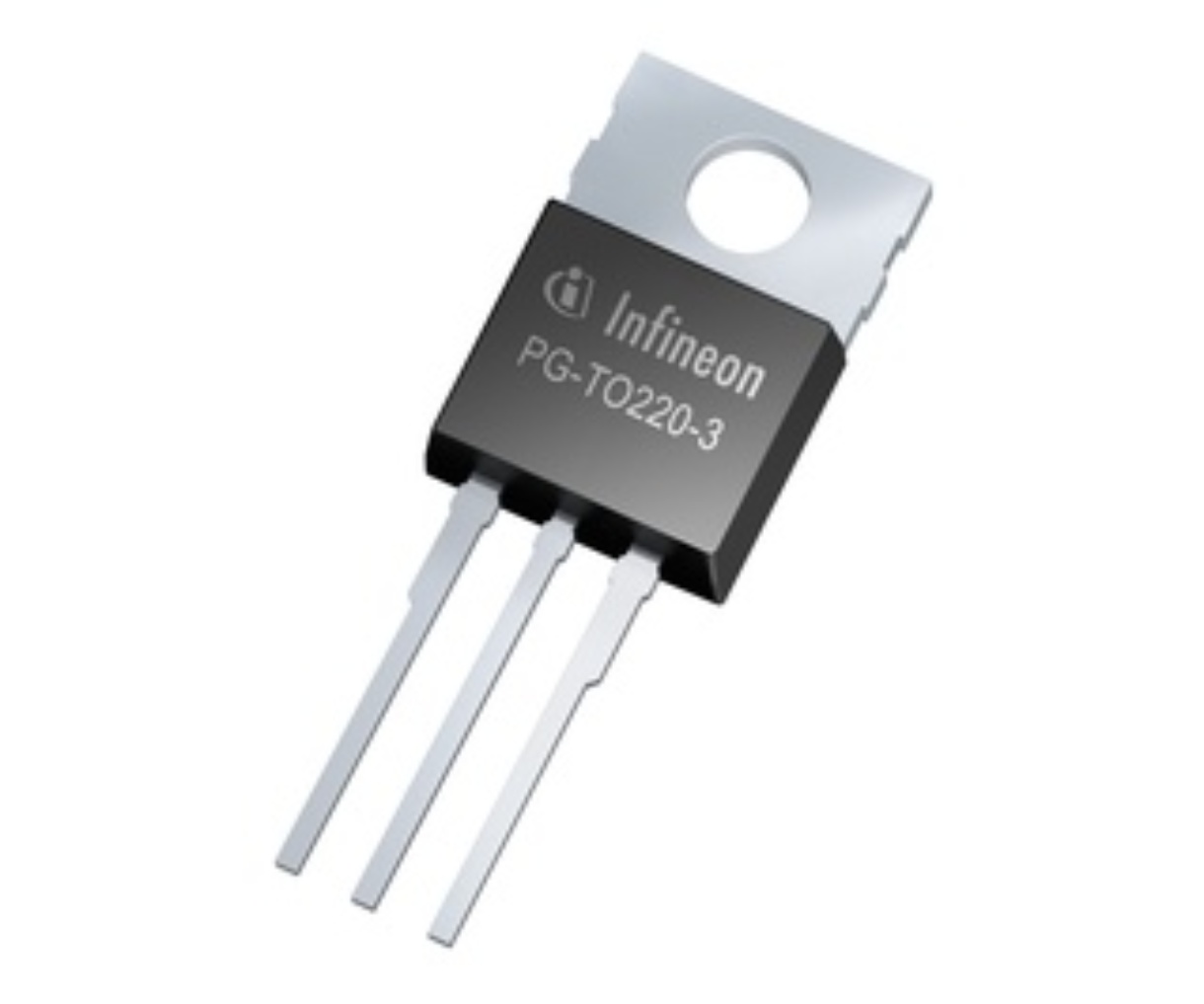

通孔 N 通道 40 V 100A(Tc) 214W(Tc) PG-TO220-3-1
立创商城:
N沟道 40V 100A
得捷:
MOSFET N-CH 40V 100A TO220-3
艾睿:
Use Infineon Technologies&s; IPP100N04S303AKSA1 power MOSFET to switch quickly between different electronic signals with ease. Its maximum power dissipation is 214000 mW. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This MOSFET transistor has a minimum operating temperature of -55 °C and a maximum of 175 °C. This N channel MOSFET transistor operates in enhancement mode. This device is made with optimos technology.
Verical:
Trans MOSFET N-CH 40V 100A Automotive 3-Pin3+Tab TO-220AB Tube
极性 N-CH
耗散功率 214 W
漏源极电压Vds 40 V
连续漏极电流Ids 100A
上升时间 16 ns
输入电容Ciss 9600pF @25VVds
下降时间 17 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 214W Tc
安装方式 Through Hole
引脚数 3
封装 TO-220-3
封装 TO-220-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tube
制造应用 OptiMOS-T2 40V addresses all kind of EPS motor control, 3-phase and H-bridge motors, HVAC fan control, elec, Thus OptiMOS-T2 40V products based on Infineon’s advanced trench technology will be the benchmark for next generation of automotive applications in energy efficiency, CO2 reduction, e-drives.
RoHS标准
含铅标准 Lead Free
