IPI90R340C3XKSA1

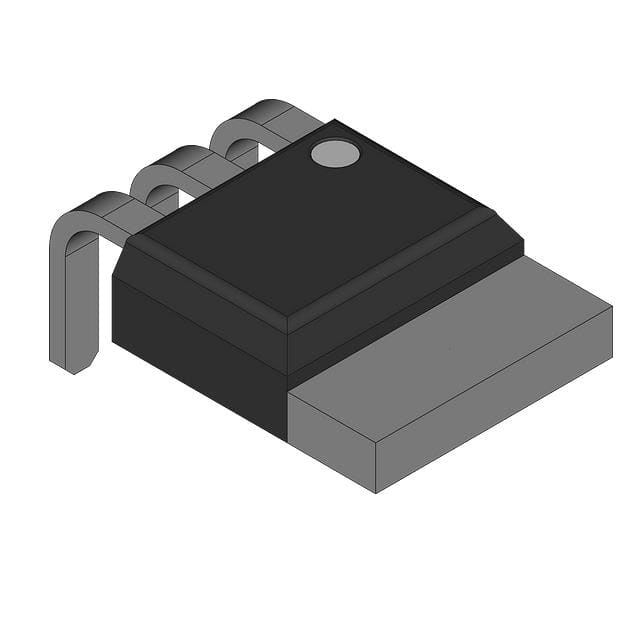

IPI90R340C3XKSA1图片1

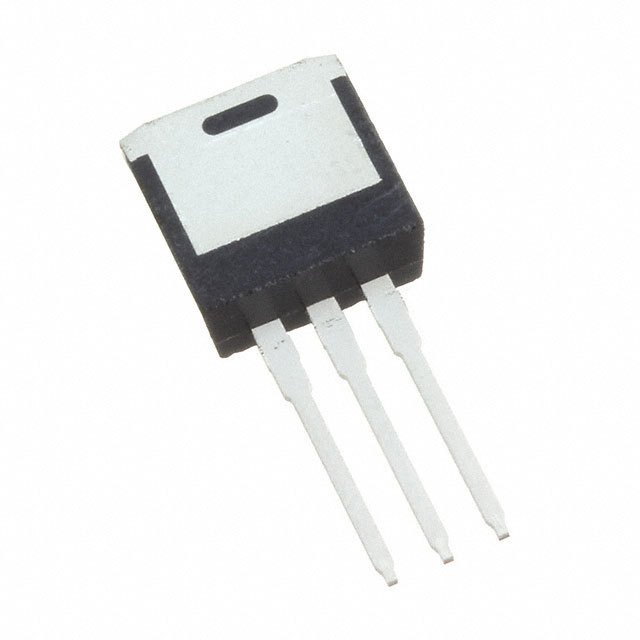

IPI90R340C3XKSA1图片2
IPI90R340C3XKSA1图片3
IPI90R340C3XKSA1概述

TO-262 N-CH 900V 15A

Summary of Features:

.
Low specific on-state resistance R on*A
.
Very low energy storage in output capacitance E oss @400V
.
Low gate charge Q g
.
Fieldproven CoolMOS™ quality
.
CoolMOS™ technology has been manufactured by since 1998

Benefits:

.
High efficiency and power density
.
Outstanding cost/performance
.
High reliability
.
Ease-of-use

Target Applications:



.
Consumer
.
PC power
.
Adapter
.
Lighting
IPI90R340C3XKSA1中文资料参数规格
技术参数

额定功率 208 W

极性 N-Channel

耗散功率 208W Tc

漏源极电压Vds 900 V

连续漏极电流Ids 15.0 A

上升时间 20 ns

正向电压Max 1.2 V

输入电容Ciss 2400pF @100VVds

下降时间 25 ns

工作温度Max 150 ℃

工作温度Min -55 ℃

耗散功率Max 208W Tc

封装参数

安装方式 Through Hole

引脚数 3

封装 TO-262-3

外形尺寸

封装 TO-262-3

物理参数

工作温度 -55℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

REACH SVHC标准 No SVHC

数据手册

在线购买IPI90R340C3XKSA1
型号: IPI90R340C3XKSA1
描述:TO-262 N-CH 900V 15A
