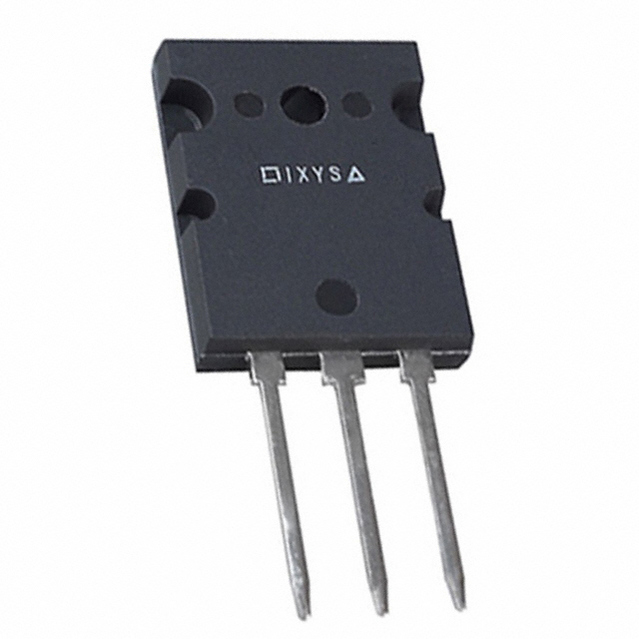

TO-264AA N-CH 70V 110A
N-Channel Enhancement Mode Avalanche Rated, High dv/dt, Low trr
Features
• International standard packages
• JEDECTO-264 AA,epoxymeet
UL94V-0, flammability classification
• Low RDS on HDMOSTM process
• Rugged polysilicon gate cell structure
• Unclamped Inductive Switching UIS rated
• Low package inductance
• Fast intrinsic Rectifier
Applications
• DC-DC converters
• Synchronous rectification
• Battery chargers
• Switched-mode and resonant-mode power supplies
• DC choppers
• Temperature and lighting controls
• Low voltage relays
额定电压DC 70.0 V
额定电流 110 A
通道数 1
漏源极电阻 6 mΩ
极性 N-Channel
耗散功率 500 W
漏源极电压Vds 70 V
漏源击穿电压 70 V
连续漏极电流Ids 110 A
上升时间 60 ns
输入电容Ciss 9000pF @25VVds
额定功率Max 500 W
下降时间 60 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500W Tc
安装方式 Through Hole
引脚数 3
封装 TO-264-3
长度 19.96 mm
宽度 5.13 mm
高度 26.16 mm
封装 TO-264-3
材质 Silicon
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
