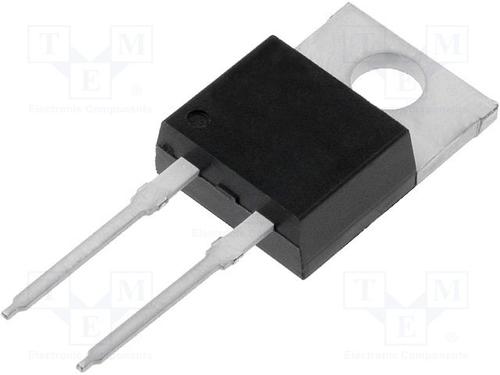

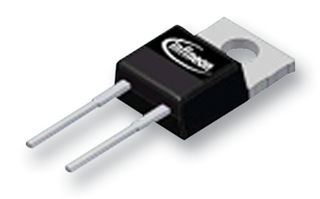

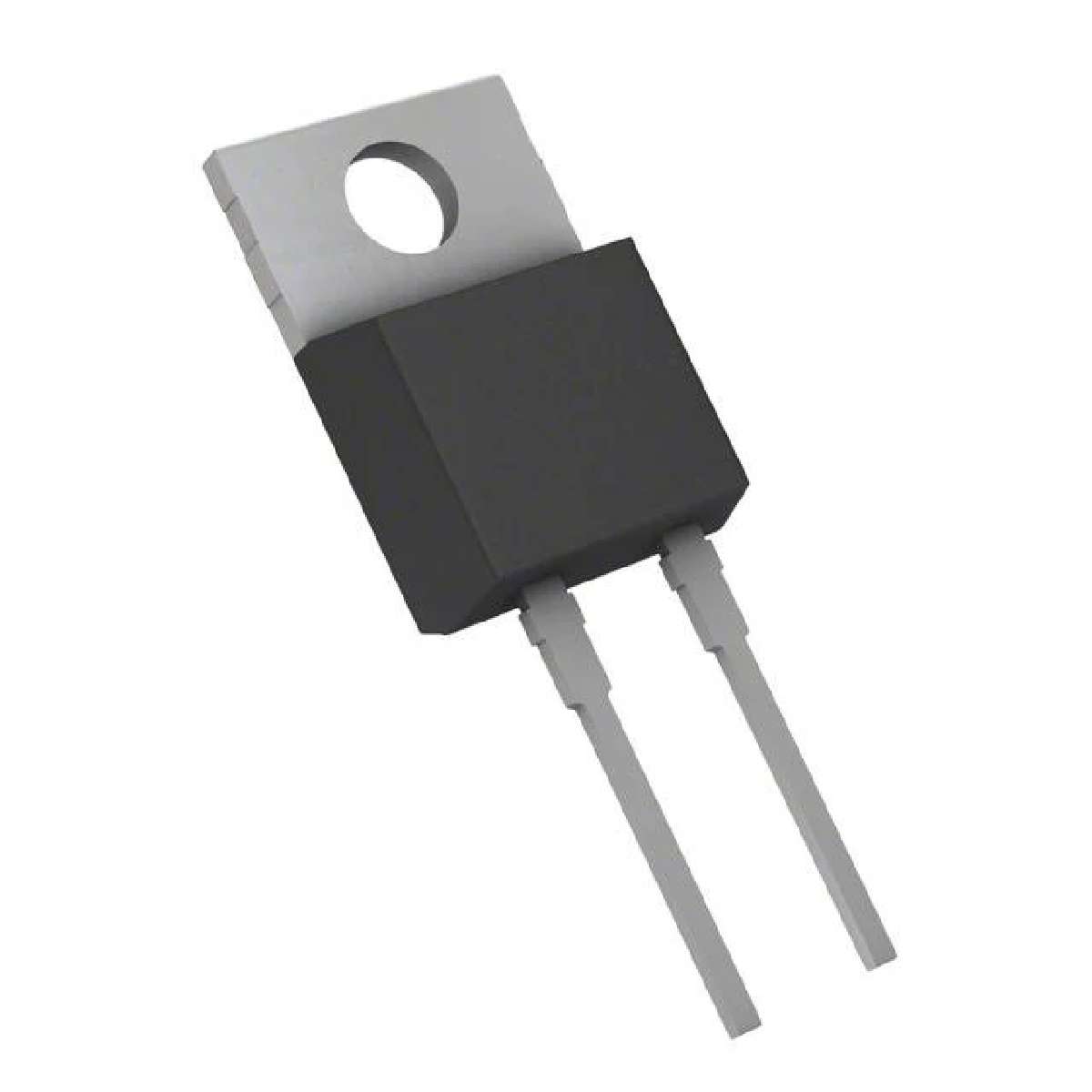

IDP15E65D1 系列 650 V 15 A 快速开关 发射体 控制 二极管 - TO-220-2
The IDP15E65D1 is a rapid-switching Emitter Controlled Diode offers low reverse recovery charge Qrr and low reverse recovery current Irrm. The rapid 1 diode family with 1.35V temperature-stable forward voltage VF, ensures the lowest conduction losses and by means of soft recovery keeps EMI emissions to a minimum. The device is perfectly suited for power factor correction PFC topologies.
负载电流 15 A
针脚数 2
正向电压 1.7V @15A
反向恢复时间 114 ns
正向电流 15 A
最大正向浪涌电流(Ifsm) 120 A
正向电压Max 1.35 V
正向电流Max 30 A
工作温度Max 175 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 TO-220-2
封装 TO-220-2
工作温度 -40℃ ~ 175℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, 工业, Industrial, 电机驱动与控制, Consumer Electronics, 电源管理, Motor Drive & Control, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
IDP15E65D1XKSA1 Infineon 英飞凌 | 当前型号 | 当前型号 |
RJU6054SDPE-00#J3 瑞萨电子 | 功能相似 | IDP15E65D1XKSA1和RJU6054SDPE-00#J3的区别 |
