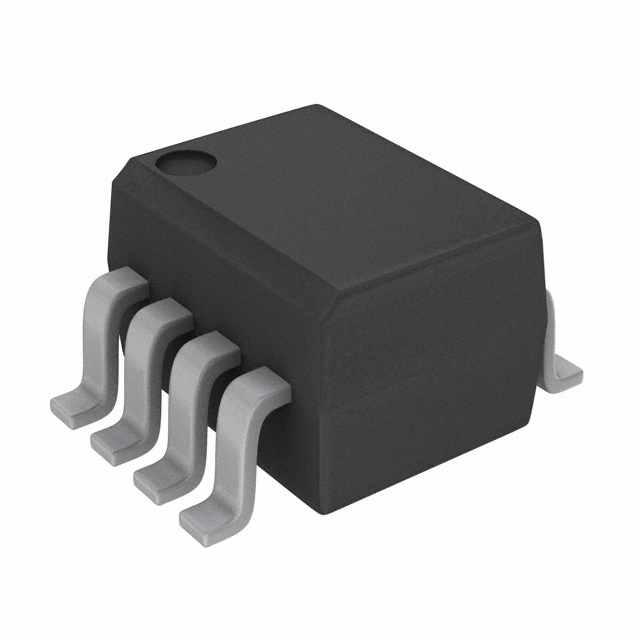

VISHAY IL211AT 光耦合器
Description
The / IL212AT/ IL213AT are optically coupled pairs with a Gallium Arsenide infrared LED and silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The IL211AT/IL212AT/IL213AT comes in a standard SOIC-8 small outline package for surface mounting which makes it ideally suited for high density applications with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices
Features
• Isolation Voltage, 3000 VRMS
• Industry Standard SOIC-8A Surface Mountable Package
• Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering
• Lead-free component
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
额定电压DC 1.30 V
输出电压 30 V
通道数 1
针脚数 8
正向电压 1.3 V
输入电流 10 mA
耗散功率 240 mW
隔离电压 4 kV
正向电流 60 mA
输出电压Max 30 V
击穿电压 6 V
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 240 mW
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
高度 1.55 mm
封装 SOIC-8
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
