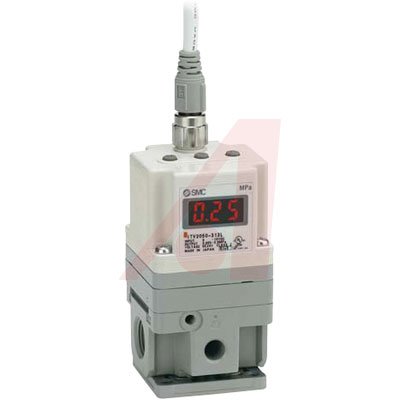

SMC Corporation Regulator; 1500L/min; .005-.9MPa range; 24VDC; 3/8GPF ports; PNP out
High-performance low-cost electro-pneumatic regulator series ITV have been expanded to add many new digital pressure control options, including DeviceNet, 16-bit BCD, and 10-bit parallel ASCII control types. Series ITV1000 compact electronic pressure regulators join the ITV line-up, and fill the gap between larger ITV2000s which flow up to 1,500 L/min and the smaller ITV0000s up to 6 L/min. At just over 80 mm tall and 50 mm square, the ITV1000 is conveniently compact yet can regulate air pressure in lines flowing up to 200 L/min. The ITV1000 has both threaded ports and a modular face to mount to all FRLs filters-regulators-lubricators.
**Features:**
* Regulator Controls Output Pressure in Proportion to Electrical Input Signal
* Integrated Display and Keypad Allow Easy Setup
* Integrated Pressure Switch Allow Remote Confirmation and/or Monitoring of Output Pressure
* IP65 Rated Enclosure
* Lightweight High Flow Design
* Can Be Attached to Other SMC F.R.I. Components
