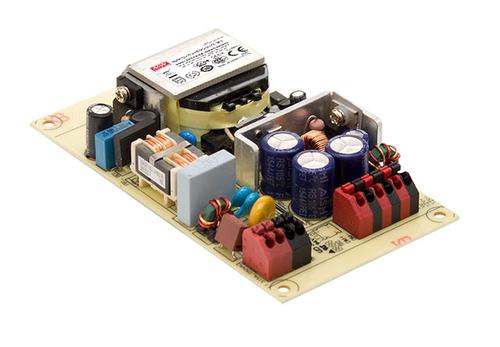

LED Driver CC 45W 350mA Linear 57-95VDC 90-295VAC PFC PWM, 0-10V Dimming Open Frame with Aux 12VDC output
350mA 57 ~ 95V 恒定电流 LED 驱动器 AC DC 转换器 拓扑 1 输出
得捷:
LED DRVR CC AC/DC 57-95V 350MA
艾睿:
AC/DC LED Power Supply 33.25W Single 10-Pin
TME:
Pwr sup.unit: switched-mode; LED; 33.25W; 57÷95VDC; 350mA; 140g
Electro Sonic:
AC/DC LED Power Supply - Const Curr - 33.25W - Fixed: 118 Vdc @ 350mA - Dim: 0-10 Vdc/PWM
CDI:
LED Driver CC 45W 350mA Linear 57-95Vdc 90-295Vac PFC PWM, 0-10V Dimming Open Frame with Aux 12VDC output
额定功率 33.25 W
输出接口数 1
输出电压 57.95 VDC
输出电流 350 mA
输出功率 33.25 W
输入电压Max 295 VAC
输入电压Min 90 VAC
输出电流Max 350 mA
输出功率Max 33 W
工作温度Max 40 ℃
工作温度Min -20 ℃
电源电压 90.295VAC, 127.417VDC
输入电压 127VDC ~ 417VDC, 90VAC ~ 295VAC
引脚数 10
封装 Open Frame
封装 Open Frame
重量 140 g
工作温度 -20℃ ~ 40℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
