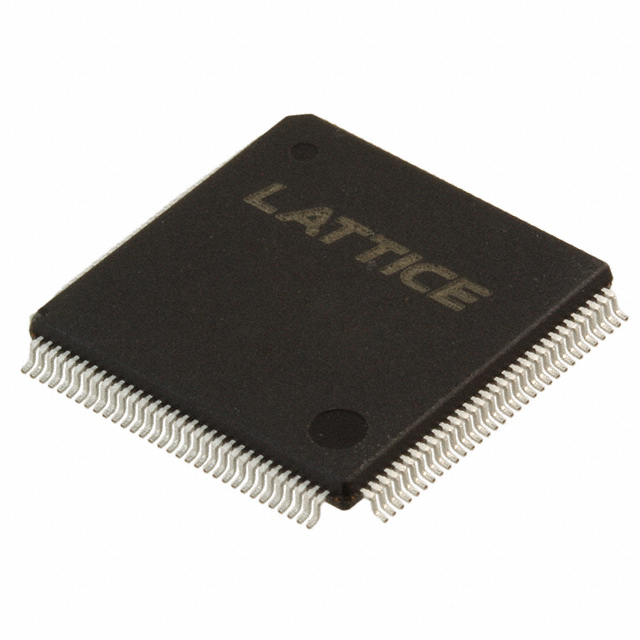

ISPLSI2096E-100LT128

IC CPLD 96MC 10NS 128TQFP

Description

The ispLSI 2096E is a High Density Programmable Logic Device. The device contains 96 Registers, 96 Universal I/O pins, six Dedicated Input pins, three Dedicated Clock Input pins, two dedicated Global OE input pins and a Global Routing Pool GRP. The GRP provides complete interconnectivity between all of these elements. The ispLSI 2096E features 5V in-system programmability and in-system diagnostic capabilities. The ispLSI 2096E offers non-volatile reprogrammability of all logic, as well as the interconnect to provide truly reconfigurable systems.

Features

• SUPERFAST HIGH DENSITY IN-SYSTEM PROGRAMMABLE LOGIC

   — 4000 PLD Gates

   — 96 I/O Pins, Six Dedicated Inputs

   — 96 Registers

   — High Speed Global Interconnect

   — Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.

   — Small Logic Block Size for Random Logic

   — 100% Functional/JEDEC Upward Compatible with ispLSI 2096 Devices

• HIGH PERFORMANCE E2CMOS® TECHNOLOGY

   — fmax = 180 MHz Maximum Operating Frequency

   — tpd = 5.0 ns Propagation Delay

   — TTL Compatible Inputs and Outputs

   — 5V Programmable Logic Core

   — ispJTAG™ In-System Programmable via IEEE 1149.1 JTAG Test Access Port

   — User-Selectable 3.3V or 5V I/O Supports MixedVoltage Systems

   — PCI Compatible Outputs

   — Open-Drain Output Option

   — Electrically Erasable and Reprogrammable

   — Non-Volatile

   — Unused Product Term Shutdown Saves Power

• ispLSI OFFERS THE FOLLOWING ADDED FEATURES

   — Increased Manufacturing Yields, Reduced Time-toMarket and Improved Product Quality

   — Reprogram Soldered Devices for Faster Prototyping

• OFFERS THE EASE OF USE AND FAST SYSTEM SPEED OF PLDs WITH THE DENSITY AND FLEXIBILITY OF FIELD PROGRAMMABLE GATE ARRAYS

   — Complete Programmable Device Can Combine Glue Logic and Structured Designs

   — Enhanced Pin Locking Capability

   — Three Dedicated Clock Input Pins

   — Synchronous and Asynchronous Clocks

   — Programmable Output Slew Rate Control to Minimize Switching Noise

   — Flexible Pin Placement

   — Optimized Global Routing Pool Provides Global Interconnectivity
