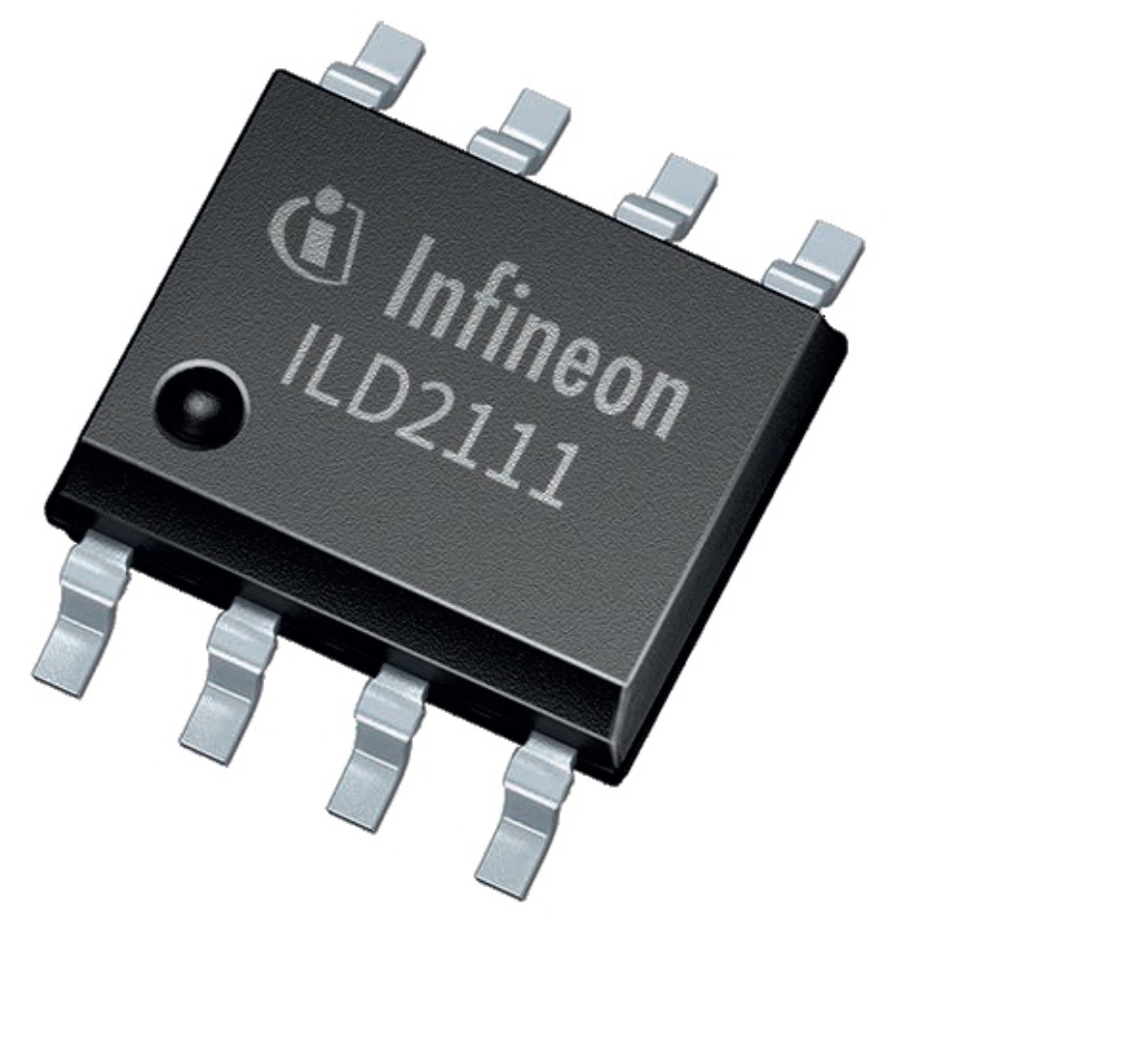

ILD2111

LED Driver 3.3V/5V/9V/12V/15V/18V/24V 8Pin DSO T/R

Description:

The is a high-performance configurable buck controller, designed as a constant current source with average output current regulation. The IC supports output current setting at the end user with a simple resistor Led-set like. Important parameters like target current and protection features can be configured by a dedicated single pin UART interface. The ILD2111 buck controller is dimmable by an external PWM signal.

.

* **

---

Summary of Features:

.

Adjustable output current via simple external resistor also at end user Led-set like

.

Highly configurable using a comprehensive parameter set to tune operation and protection features

.

Flicker-free and phase-aligned PWM dimming down to 1%

.

High output current accuracy of ±5% over full output current and temperature range

Benefits:

.

Quick design and easy variant handling supported by parameter configurability with .dp Vision GUI for shortened development cycles and more flexibility

.

The input voltage range is fully scalable between 2.5 V and 600V thanks to low side current sensing

.

Full protection incl. intelligent thermal management
