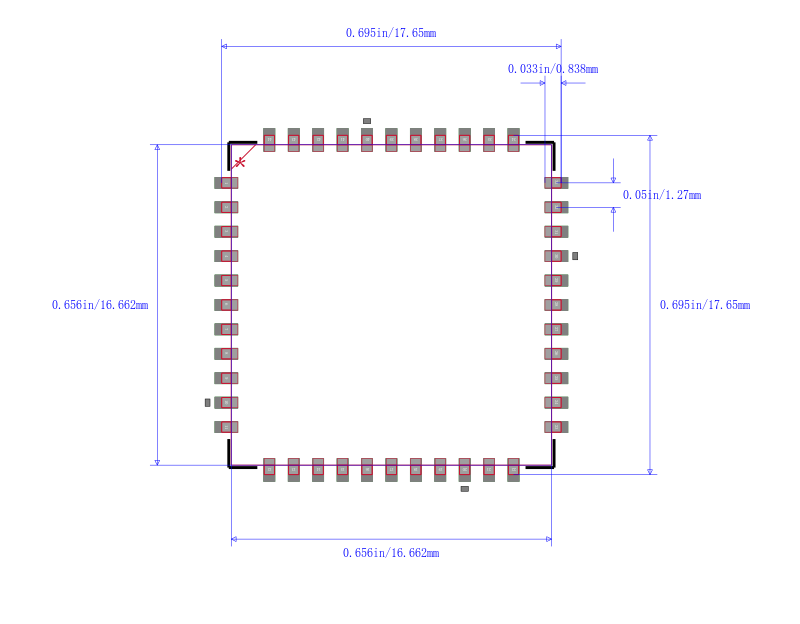

3位A / D转换器 3 Digit A/D Converter
General Description
The Maxim ICL7106/ICL7107 are monolithic analog-to-digital converters ADCs. They have very high input impedances and require no external display drive circuitry. On-board active components include polarity and digit drivers, segment decoders, voltage reference and a clock circuit. The ICL7106 will directly drive a nonmultiplexed liquid crystal display LCD, whereas the ICL7107 will directly drive a common anode light emitting diode LED display.
Features
Improved 2nd Source see Page 3 for “Maxim Advantage”
Guaranteed First Reading Recovery from Overrange
On-Board Display Drive Capability—No External Circuitry Required
LCD—ICL7106
LED—ICL7107
High-Impedance CMOS Differential Inputs
Low Noise < 15µVP-P without Hysteresis or Overrange Hangover
Clock and Reference On-Chip
True Differential Reference and Input
True Polarity Indication for Precision Null Applications
Monolithic CMOS Design
Applications
Pressure
Voltage
Resistance
Temperature
Conductance
Current
Speed
Material
Thickness
Functional Diagrams
