ICR3SAD2参数规格_中文资料_数据手册PDF

ICR3SAD2概述

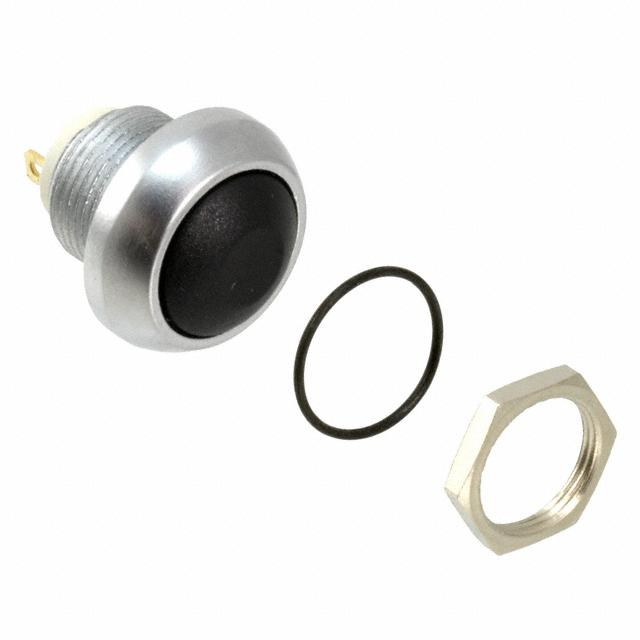

Switch Push Button N.O. SPST Round Curved Button 5A 48VAC 48VDC Momentary Contact Solder Lug Panel Mount

立创商城:
ICR3SAD2

Verical:
Switch Push Button N.O. SPST Round Curved Button 5A 48VAC 48VDC Momentary Contact Solder Lug Panel Mount

Powell:
IP67 Sealed Pushbutton Switch

Online Components:
Switch Push Button N.O. SPST Round Curved Button 5A 48VAC 48VDC Momentary Contact Solder Lug Panel Mount

Electro Sonic:
Switch Push Button N.O. SPST Round Curved Button 5A 48VAC 48VDC Momentary Contact Solder Lug Panel Mount

ICR3SAD2中文资料参数规格

技术参数

额定电流Max 5 A

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压DC Max 48 V

额定电压AC Max 48 V

接触电阻Max 50 mΩ

封装参数

安装方式 Panel

封装 -

外形尺寸

高度 20 mm

封装 -

物理参数

触点材质 Silver

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买ICR3SAD2

型号： ICR3SAD2

制造商： Apem Components

描述：Switch Push Button N.O. SPST Round Curved Button 5A 48VAC 48VDC Momentary Contact Solder Lug Panel Mount
