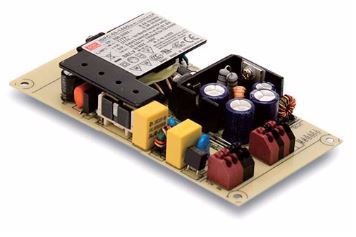

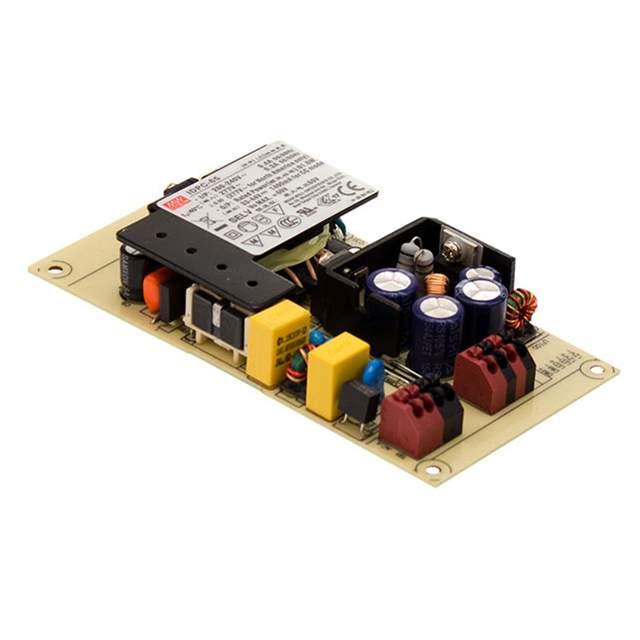

LED电源 64.4W 1400mA 34-46V CC Dimming
1.4A 34 ~ 46V Constant Current LED Driver AC DC Converter Topology 1 Output
得捷:
LED DRIVER CC AC/DC 34-46V 1.4A
贸泽:
LED电源 64.4W 1400mA 34-46V CC Dimming
艾睿:
AC/DC LED Power Supply 64.4W Single 14-Pin
安富利:
LED DRVR Module 1-CH PWM 46V 1.4A
TME:
Pwr sup.unit: switched-mode; LED; 64.4W; 34÷46VDC; 1400mA; 150g
Electro Sonic:
AC/DC LED Power Supply - Const Curr - 64.4W - Fixed:82 Vdc OC @ 1,400mA - Dim: 0-10 Vdc/PWM
CDI:
LED Driver CC 64.4W 1400mA Linear 34-46Vdc 180-295Vac PFC PWM, 0-10V Dimming Open Frame
额定功率 64.4 W
输出接口数 1
输出电压 34V ~ 46V
输出电流 1.4 A
通道数 1
输出功率 64.4 W
隔离电压 3.75 kV
输入电压Max 295 VAC
输入电压Min 180 VAC
输入电压DC Max 417 V
输入电压DC Min 254 v
输入电压AC Max 295 v
输入电压AC Min 180 v
输出电压Max 46 V
输出电压Min 34 V
输出电流Max 1400 mA
输出功率Max 64 W
工作温度Max 40 ℃
工作温度Min -20 ℃
输入电压 180VAC ~ 295VAC, 254VDC ~ 417VDC
引脚数 14
封装 Open Frame
长度 130.05 mm
宽度 67.56 mm
高度 20.57 mm
封装 Open Frame
工作温度 -20℃ ~ 40℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 无铅
