ICM-20600

ICM-20600 编带

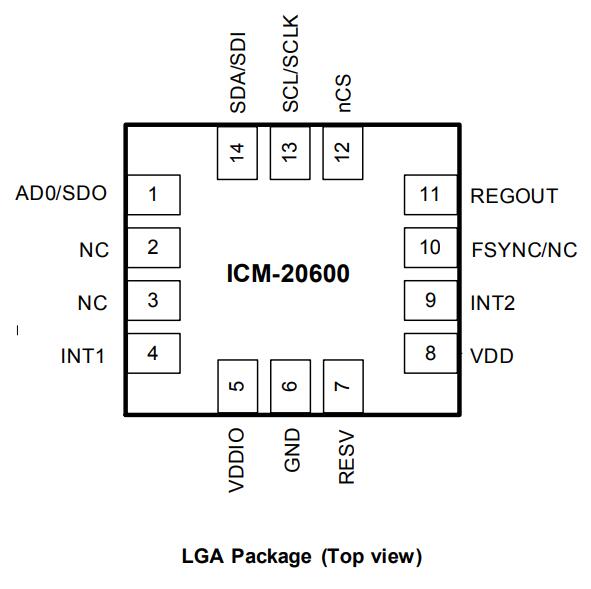

High Performance 6-Axis MEMS MotionTracking Device in a 2.5x3.00 mm Package The is a 6-axis MotionTracking device that combines a 3-axis gyroscope, 3-axis accelerometer, in a small 2.5x3x0.91mm 14-pin LGA package.

.

High performance specs * Gyroscope sensitivity error: ±1% * Gyroscope noise: ±4mdps/ÖHz * Accelerometer noise: 100µg/ÖHz * Includes 1K-byte FIFO to reduce traffic on the serial bus interface, and reduce power consumption by allowing the system processor to burst read sensor data and then go into a low-power mode * EIS FSYNC support ICM-20600 includes on-chip 16-bit ADCs, programmable digital filters, an embedded temperature sensor, and programmable interrupts. The device features an operating voltage range down to 1.71V. Communication ports include I 2 C and high speed SPI at 10MHz.
