IRS2181

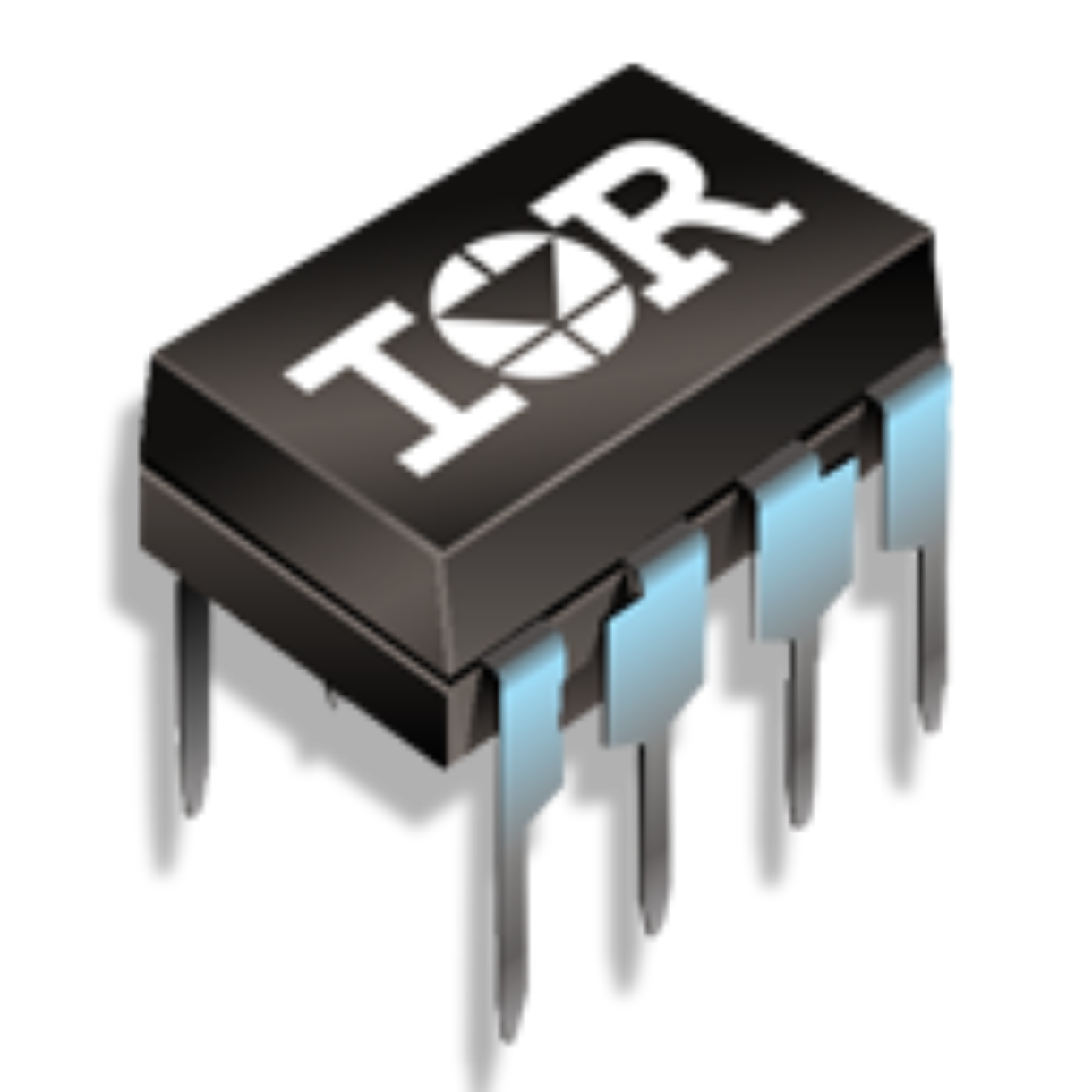

IRS2181图片1
IRS2181概述

600V High and Low Side Driver IC with typical 1.9A source and 2.3A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs. Also available in 8 Lead SOIC, 14 Lead SOIC, 14 Lead PDIP, and 14 Lead MLPQ 4X4 .

Summary of Features:

.
Floating channel designed for bootstrap operation
.
Fully operational to +600 V
.
Tolerant to negative transient voltage, dV/dt immune
.
Gate drive supply range from 10 V to 20 V
.
Undervoltage lockout for both channels
.
3.3 V and 5 V input logic compatible
.
Matched propagation delay for both channels
.
Logic and power ground +/- 5 V offset
.
Lower di/dt gate driver for better noise immunity
.
Output source/sink current capability 1.4 A/1.8 A
IRS2181中文资料参数规格
封装参数

安装方式 Through Hole

封装 PDIP-8

外形尺寸

封装 PDIP-8

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

IRS2181引脚图与封装图
IRS2181电路图
在线购买IRS2181
型号: IRS2181
制造商: Infineon 英飞凌
描述:600V High and Low Side Driver IC with typical 1.9A source and 2.3A sink currents in 8 Lead PDIP package for IGBTs and MOSFETs. Also available in 8 Lead SOIC, 14 Lead SOIC, 14 Lead PDIP, and 14 Lead MLPQ 4X4 .
