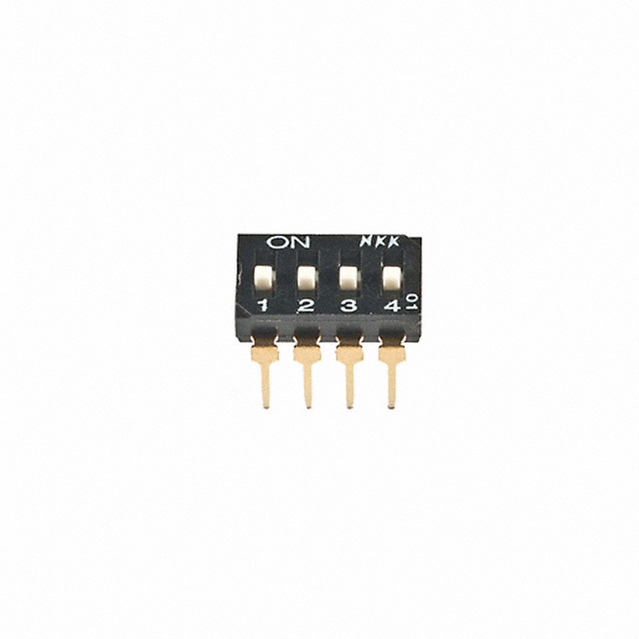

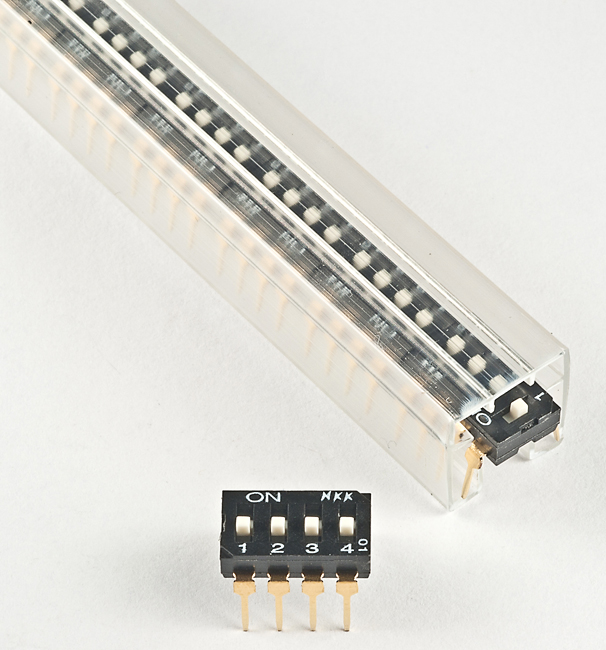

DIP Switches / SIP Switches 4POS SLIDE DIP PC 25mA STICK-TUBE
DIP SPST 4 位置 通孔 滑动式（标准） 触动器 25mA 24VDC
立创商城:
JS01-04AP4-ST
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
贸泽:
DIP Switches / SIP Switches 4 POS SLIDE DIP PC 25mA STICK-TUBE
艾睿:
Switch DIP OFF ON SPST 4 Extended Slide 0.025A 24VDC PC Pins 2000Cycles 2.54mm Thru-Hole Stick/Tube
Allied Electronics:
Switch; Slide; SPST; Thru-Hole; 4 Position; Extended Slide; 25mA; Gold; 24VDC; Pin/Tube
Chip1Stop:
Switch DIP OFF ON SPST 4 Extended Slide 0.025A 24VDC PC Pins 2000Cycle 2.54mm Thru-Hole Stick/Tube
Verical:
Switch DIP OFF ON SPST 4 Extended Slide 0.025A 24VDC PC Pins 2000Cycles 2.54mm Thru-Hole Stick/Tube
Powell:
DIP SLIDE/PC
额定电压DC 24 V
额定电流 25 mA
针脚数 4
额定电流Max 0.025A @24VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 ThroughHole
长度 11.1 mm
宽度 9 mm
高度 4.1 mm
封装 ThroughHole
触点材质 Beryllium Copper
工作温度 25℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
