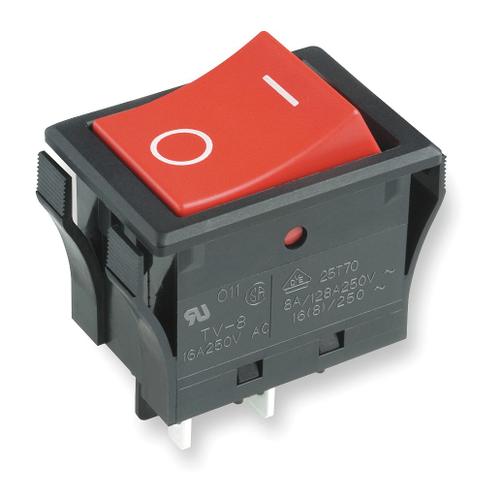

NKK SWITCHES JWL21RC1A 船型开关, DPST, 16A, 250VAC, 红色
Industry"s first molded rocker with TV rating. Designed to handle large inrush current, with high electrical capacity of 10 and 16 amps. JWL models certified for TV-8 rating. Uniquely constructed to break light contact welds and a specially designed plate minimizes contact bounce.
贸泽:
Rocker Switches 16A DPST ON OFF RED
e络盟:
船型开关, DPST, 16A, 250VAC, 红色
艾睿:
Implementing this JWL21RC1A rocker switch from NKK Switches will give the user complete control of whether your design is on or not. This device has a maximum current rating of 16 A @ 250VAC. It has a DPST configuration. This rocker switch panel has an operating temperature range of -25 °C to 70 °C. The JWL21RC1A rocker switch panel has a quick connect/solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 72 VDC. This product is 32 mm long, 36.5 mm tall and 23 mm deep.
Allied Electronics:
SWITCH ROCKER DPST 16A 125V
Chip1Stop:
Switch Rocker ON None OFF DPST Quick Connect/Solder Lug Curved Rocker 16A 250VAC 72VDC 25000Cycles
Verical:
Switch Rocker ON None OFF DPST Quick Connect/Solder Lug Curved Rocker 16A 250VAC 72VDC 25000Cycles
Newark:
# NKK SWITCHES JWL21RC1A Rocker Switch, Non Illuminated, DPST, On-None-Off, Red, Panel, 16 A
Powell:
POWER ROCKER/SNAP-IN
触点电镀 Silver
额定电压DC 72 V
接触器类型 Rocker
额定电压AC 250 V
额定电流 16 A
排数 2
方向 Vertical
触点类型 DPST
额定电流Max 16A @250VAC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压DC Max 72 V
额定电压AC Max 250 V
接触电阻Max 20 mΩ
安装方式 Lug, Panel
长度 32 mm
宽度 23 mm
高度 36.5 mm
外壳颜色 Black
颜色 Black
触点材质 Silver Alloy
工作温度 25℃ ~ 75℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
