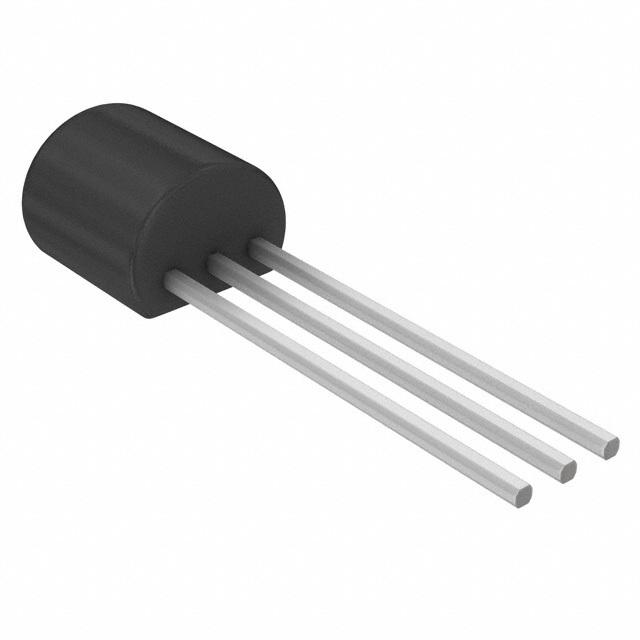

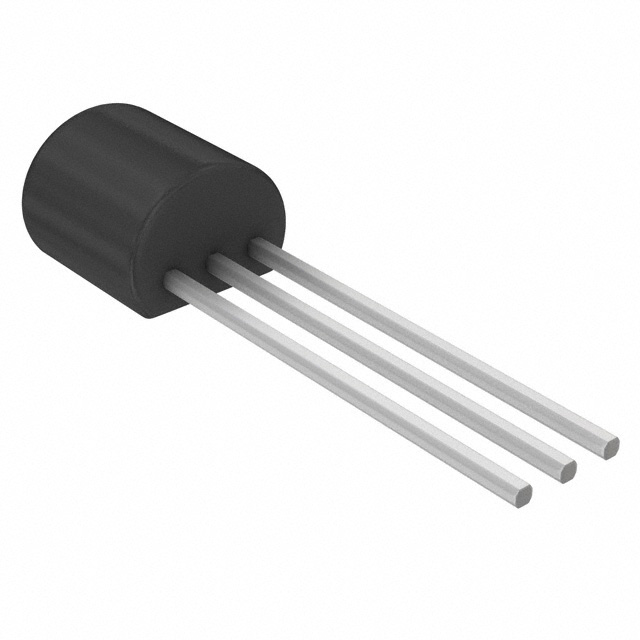

FAIRCHILD SEMICONDUCTOR J113 晶体管, JFET, JFET, -35 V, 2 mA, -3 V, TO-92, JFET
The from is a through hole, N channel switch in TO-92 package. This device is designed for low level analogue switching, sample and hold circuits and chopper stabilized amplifiers.
- .
- Source and drain are interchangeable
- .
- Gate to source breakdown voltage of 35V
- .
- Gate to source cutoff voltage of 3V
- .
- Zero gate voltage drain current of 2mA
- .
- Power dissipation pd of 625mW
- .
- Operating junction temperature of -55°C to 150°C
- .
- Drain source on resistance of 100 Ohm
额定电压DC 35.0 V
额定电流 50.0 mA
击穿电压 -35.0 V
漏源极电阻 100 Ω
极性 N-Channel
耗散功率 625 mW
漏源极电压Vds 35.0 V
栅源击穿电压 35 V
连续漏极电流Ids 2.00 mA
击穿电压 35 V
额定功率Max 625 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 3
封装 TO-226-3
长度 5.2 mm
宽度 4.19 mm
高度 5.33 mm
封装 TO-226-3
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Consumer Electronics, Portable Devices, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
J113 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
J113_D75Z 飞兆/仙童 | 完全替代 | J113和J113_D75Z的区别 |
J113_D74Z 安森美 | 功能相似 | J113和J113_D74Z的区别 |
J113-E3 威世 | 功能相似 | J113和J113-E3的区别 |
