NKK SWITCHES JF15SP1G 轻触开关, 不发光, 3 N, 24 V, 50 mA, 焊接, JF系列
顶部触动 触摸 SPST-NO 通孔
得捷:
SWITCH TACTILE SPST-NO 0.05A 24V
立创商城:
JF-15SKSBNP2
e络盟:
NKK SWITCHES JF15SP1G 轻触开关, 不发光, 3 N, 24 V, 50 mA, 焊接, JF系列
艾睿:

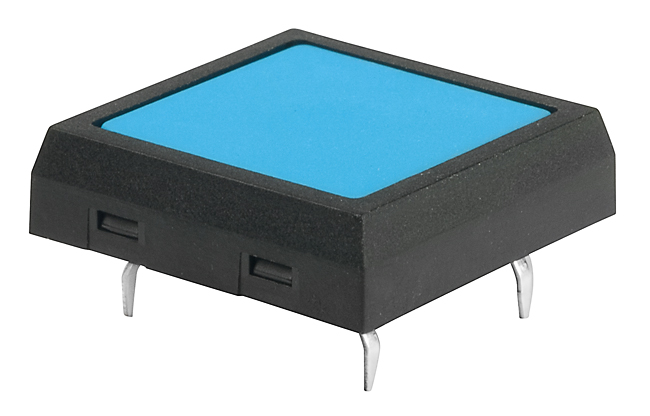

Want to use a force of pressure to turn on your circuit? Check out this ultra-thin JF15SP1G tactile switch from NKK Switches. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has an operating temperature range of -25 °C to 85 °C. The JF15SP1G tactile switch has a PC pin termination style. This blue flush square button actuator is 0 mm long. This product is 17.7 mm long, 5.08 mm tall and 17.7 mm deep. The maximum DC voltage rating is 24 VDC.
Allied Electronics:
Switch; Sealed; Tactile; SPST; OFF-ON; Square; NonIllum; Blue Actuator; 0.05A; 24VDC; PC
Chip1Stop:
Switch Tactile OFF ON SPST Flush Square Button PC Pins 0.05A 24VDC 500000Cycles 3N Thru-Hole
Verical:
Switch Tactile OFF ON SPST Flush Square Button PC Pins 0.05A 24VDC 500000Cycles 3N Thru-Hole
Newark:
# NKK SWITCHES JF15SP1G Tactile Switch, Non Illuminated, 24 V, 50 mA, 3 N, Solder, JF Series
Powell:
ULTRA THIN TACTILE/PC
触点电镀 Silver
额定电压DC 24 V
额定电流 0.05 A
绝缘电阻 500 MΩ
排数 2
触点类型 SPST
额定电流Max 0.05A @24VDC
工作温度Max 85 ℃
工作温度Min -25 ℃
额定电压 24 VDC
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 ThroughHole
长度 17.7 mm
宽度 17.7 mm
高度 5.08 mm
封装 ThroughHole
颜色 Blue
触点材质 Phosphor Bronze
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
JF15SP1G NKK 日本长野 | 当前型号 | 当前型号 |
JF15SP1C 日本长野 | 完全替代 | JF15SP1G和JF15SP1C的区别 |
JF15SP1F 日本长野 | 完全替代 | JF15SP1G和JF15SP1F的区别 |
JF15SP1H 日本长野 | 类似代替 | JF15SP1G和JF15SP1H的区别 |
