JAN1N4946

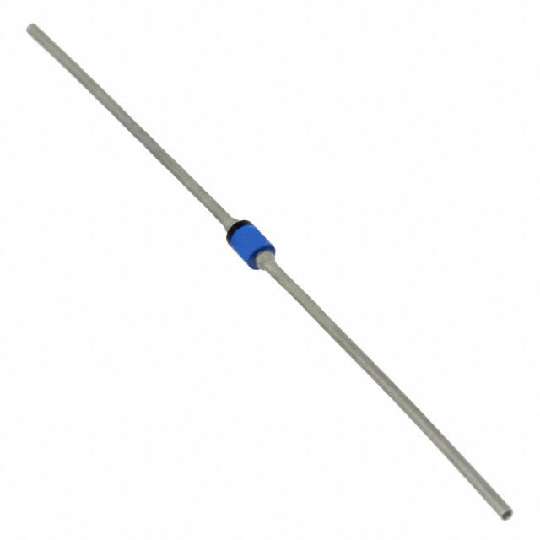

超小型封装 MICROMINIATURE PACKAGE

DESCRIPTION

This “fast recovery”rectifier diode series is militaryqualified to MIL-PRF-19500/359 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized  1.0 Amp rated rectifiersfor  working peak reverse voltages from 200 to 1000 volts are hermetically sealed with voidless-glass construction using aninternal “Category I” metallurgical bond.

FEATURES

•  Popular JEDEC registered 1N4942 to 1N4948 series

•  Voidless hermetically sealed glass package

•  Triple-Layer Passivation

•  Internal “Category I”Metallurgical bonds

•  Working Peak Reverse Voltage 200 to 1000Volts.

•  JAN, JANTX, and JANTXV available per MIL-PRF-19500/359 for JANS, see 1N5615 thru 1N5623

•  Surface mount equivalents alsoavailable inasquare end-cap MELF configuration with“US” suffix seeseparate data sheet for 1N5615US thru 1N5623US

APPLICATIONS/ BENEFITS

•  Fast recovery 1 Amp rectifiers200 to 1000 V

•  Military and other high-reliability applications

•  Generalrectifier applicationsincluding bridges, half bridges, catch diodes, etc.

•  High forward surge current capability

•  Extremelyrobust construction

•  Lowthermal resistance

•  Controlled avalanche with peakreverse power capability

•  Inherentlyradiation hardas described in MicroNote 050
