JANTX1N823UR-1

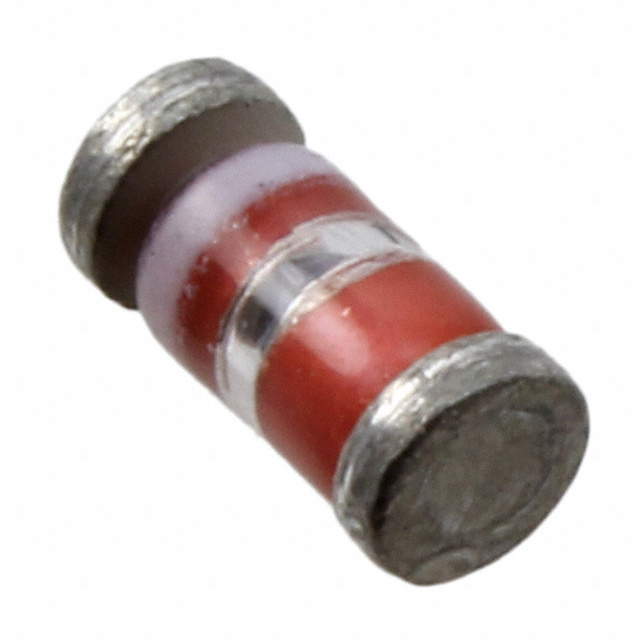

JANTX1N823UR-1图片1
JANTX1N823UR-1图片2
JANTX1N823UR-1图片3
JANTX1N823UR-1图片4
JANTX1N823UR-1概述

6.2与6.55伏温度补偿表面贴装齐纳二极管参考 6.2 & 6.55 Volt Temperature Compensated Surface Mount Zener Reference Diodes

The 1N821UR-1 thru 1N829AUR-1 series of surface mount Zero-TC Reference Diodes provides a selection of both 6.2 V and 6.55 V nominal voltages and temperature coefficients to as low as 0.0005 %/oC for minimal voltage change with temperature when operated at 7.5 mA.  These glass surface mount DO-213AA MELF reference diodes are optionally available with an internal-metallurgical-bond as well as RoHS compliant option for commercial applications.  This type of bonded Zener package construction is also available in JAN, JANTX, and JANTXV military qualifications RoHS compliant option not applicable.  also offers numerous other Zener Reference Diode products for a variety of other voltages up to 200 V.

JANTX1N823UR-1中文资料参数规格
技术参数

容差 ±5 %

耗散功率 0.5 W

测试电流 7.5 mA

稳压值 6.2 V

额定功率Max 500 mW

工作温度Max 175 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装 DO-213AA

外形尺寸

封装 DO-213AA

物理参数

工作温度 -65℃ ~ 175℃

其他

产品生命周期 Active

包装方式 Bag

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

JANTX1N823UR-1引脚图与封装图
JANTX1N823UR-1引脚图
JANTX1N823UR-1封装图
JANTX1N823UR-1封装焊盘图
