SILICON 400毫瓦齐纳二极管 SILICON 400 mW ZENER DIODES
• 1N746AUR-1 THRU 1N759AUR-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/127
• 1N4370AUR-1 THRU 1N4372AUR-1 AVAILABLE IN JAN, JANTX AND JANTXV PER MIL-PRF-19500/127
• LEADLESS PACKAGE FOR SURFACE MOUNT
• METALLURGICALLY BONDED
艾睿:
Now you can operate a diode in its reverse breakdown region by using a voltage regulator JANTX1N758AUR-1 zener diode from Microsemi. Its test current is 20 mA. Its maximum power dissipation is 500 mW. Its maximum leakage current is 1 μA. This device has a maximum regulator current of 40 mA. This zener device has a nominal voltage of 10 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 175 °C.
Chip1Stop:

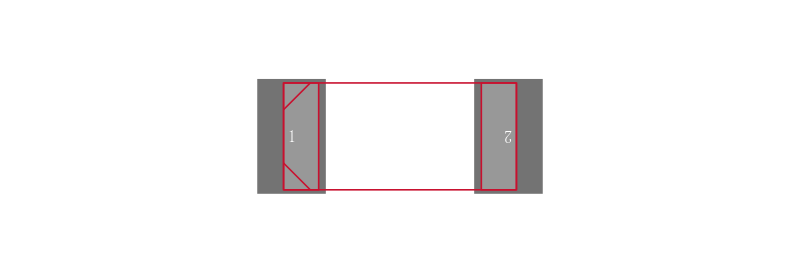

Diode Zener Single 10V 5% 500mW 2-Pin DO-213AA
Verical:
Zener Diode Single 10V 5% 17Ohm 500mW 2-Pin DO-213AA Bag
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
JANTX1N758AUR-1 Microsemi 美高森美 | 当前型号 | 当前型号 |
JANTXV1N758AUR-1 美高森美 | 功能相似 | JANTX1N758AUR-1和JANTXV1N758AUR-1的区别 |
