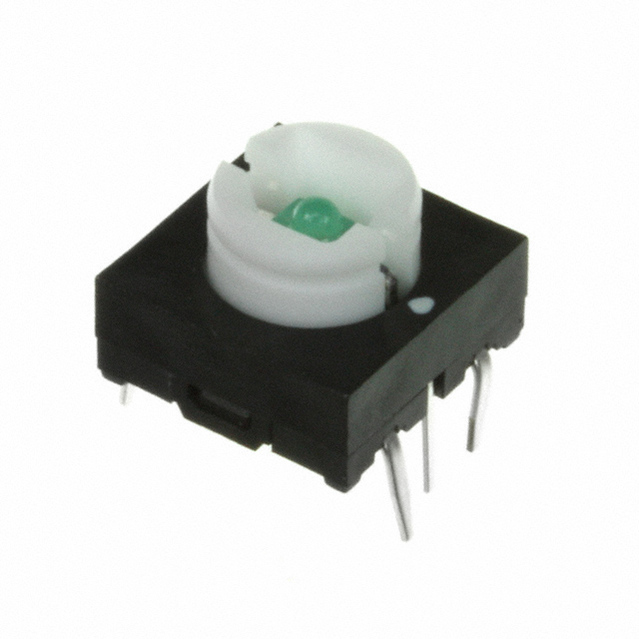

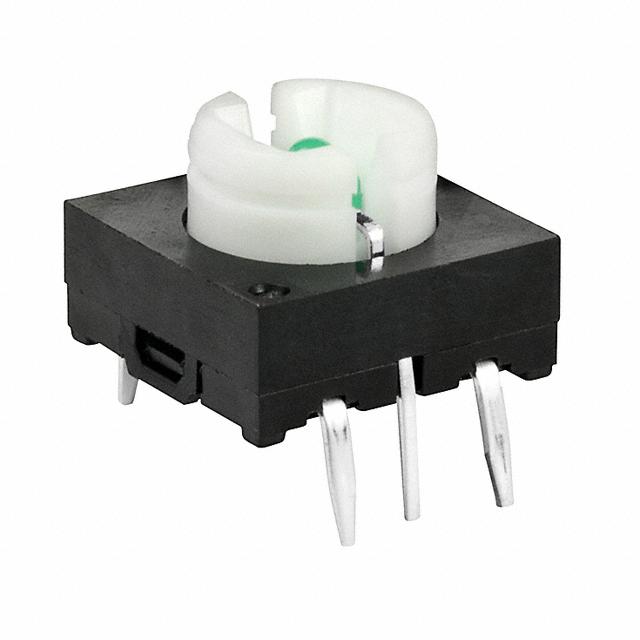

NKK SWITCHES JB15LPF 轻触开关, 0.05A, 24VDC, 焊接
顶部触动 触摸 SPST-NO 通孔
得捷:
SWITCH TACTILE SPST-NO 0.05A 24V
立创商城:
JB-15LMP2
艾睿:
This low profile JB15LPF tactile switch from NKK Switches will turn your system on and off when there is a change in pressure. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has an operating temperature range of -25 °C to 70 °C. The JB15LPF tactile switch has a PC pin termination style. The maximum DC voltage rating is 24 VDC. This flush square button actuator is 0 mm long. This product is 12 mm long, 11.2 mm tall and 12 mm deep.
Allied Electronics:
Switch; Sealed; Tactile; SPST; OFF-ON; Illum; Green LED; No Cap; 0.05A; 24VDC; Str PC
Chip1Stop:
Switch Tactile OFF ON SPST Square Button PC Pins 0.05A 24VDC 5000000Cycles 1.76N Thru-Hole
Verical:
Switch Tactile OFF ON SPST Flush Square Button PC Pins 0.05A 24VDC 5000000Cycles 1.76N Thru-Hole
Newark:
# NKK SWITCHES JB15LPF Tactile Switch, Illuminated, 24 V, 50 mA, 1.76 N, Solder
额定电压DC 24 V
额定电流 0.05 A
排数 2
触点类型 SPST
额定电流Max 0.05A @24VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 24 VDC
接触电阻Max 50 mΩ
安装方式 Through Hole
封装 ThroughHole
长度 10 mm
高度 11.2 mm
封装 ThroughHole
触点材质 Beryllium Copper
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
