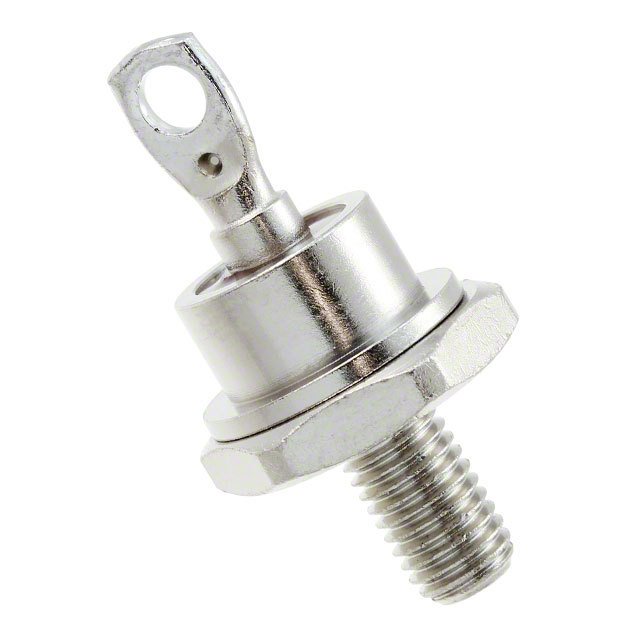

JANTX1N1190R

军事硅电力整流器 Military Silicon Power Rectifier

This series of silicon power rectifier part numbers are qualified up to the JANTXV level for high reliability applications.  They are constructed with glass passivated die and feature glass to metal seal construction.  They offer a 500 amps surge rating and provide a VRWM up to 1000 volts.

艾睿:
Converting from AC to DC is simple when using a switching diode JANTX1N1190R rectifier from Microsemi. It is made in a single configuration. Its peak non-repetitive surge current is 500 A, while its maximum continuous forward current is 35 A. This rectifier has an operating temperature range of -65 °C to 175 °C.

Verical:
Rectifier Diode Switching 600V 35A 2-Pin DO-5 Tray
