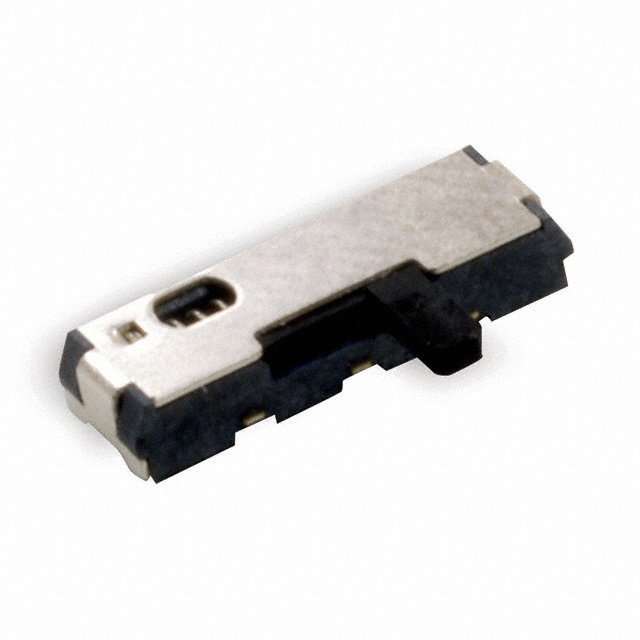

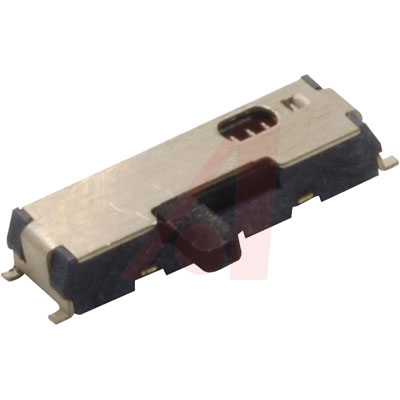

JSM08022SAQNR

C & K COMPONENTS  JSM08022SAQNR  拨动开关, JSM系列, SPDT, 开, SMD, 300 mA

The JSM series Sub-miniature Slide Switch features positive detent, low profile and IR reflow to 260° solder profile, surface and thru-hole mounting. It has maintained and momentary functions, suitable for use with telecommunication products and thermostat select switch applications.

.

10000 Make-and-break electrical life cycles at full load

.

70mR Maximum contact resistance

.

100MR Minimum insulation resistance at 500VDC

.

100VAC Minimum dielectric strength at sea level

.

-10 to +60°C Operating temperature

.

LCP, glass filled halogen free housing

.

UL94V-2 Flammability rated black nylon 4/6 actuator

.

Beryllium copper, silver-plated contacts

.

Brass, silver-plated terminals

.

Stainless steel cover

.

Stainless steel return spring
