JB15LPF-JB

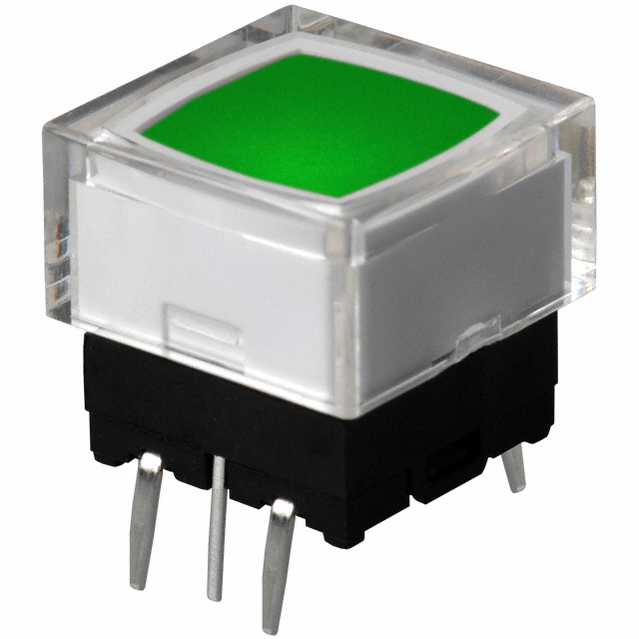

NKK SWITCHES  JB15LPF-JB  轻触开关, 0.05A, 24VDC, 焊接

Series JB illuminated low profile process sealed tactiles meet sealing standard IP67 of IEC60529 similar to NEMA 4 & 13 and are ready for wave or manual soldering. These switches are designed for use in a low-voltage, low-current, logic-level circuit. When used as intended the results do not produce hazardous energy. Series JB tactiles have not been tested for UL recognition or CSA certification.

艾睿:
Want to use a force of pressure to turn on your circuit? Check out this low profile JB15LPF-JB tactile switch from NKK Switches. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The JB15LPF-JB tactile switch has a PC pin termination style. This product is 12 mm long, 11.2 mm tall and 12 mm deep. This clear/white flush square button actuator is 0 mm long. The maximum DC voltage rating is 24 VDC.

Allied Electronics:
Switch, Tactile; SPST Off On; 50mA 24VDC; 2.1VDC LED; PCB mnt; Grn, Clr/Wht cap

Chip1Stop:
Switch Tactile OFF ON SPST Square Button PC Pins 0.05A 24VDC 5000000Cycles 1.76N Thru-Hole

Verical:
Switch Tactile OFF ON SPST Flush Square Button PC Pins 0.05A 24VDC 5000000Cycles 1.76N Thru-Hole

Newark:
# NKK SWITCHES  JB15LPF-JB  Tactile Switch, Illuminated, 24 V, 50 mA, 1.76 N, Solder
