JANS1N5806

整流器效率高， ESP ， 2.5安培至20 AMP RECTIFIERS HIGH EFFICIENCY, ESP, 2.5 AMP TO 20 AMP

DESCRIPTION

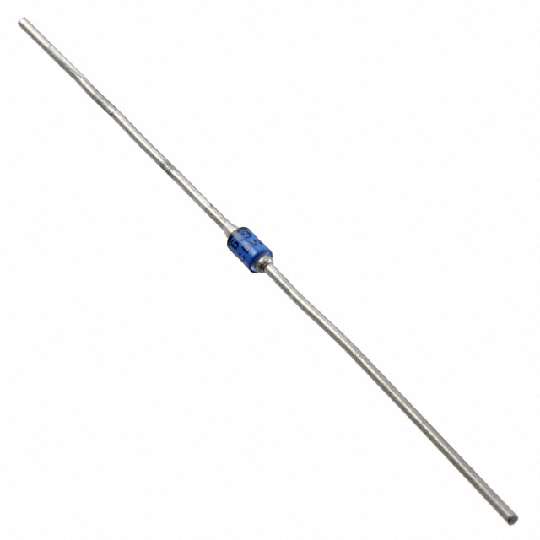

This “ultrafast recovery” rectifier diode series is military qualified to MIL-PRF-19500/477 and is ideal for high-reliability applications where a failure cannot be tolerated. These industry-recognized 2.5 Amp rated rectifiers for working peak reverse voltages from 50 to 150 volts are hermetically sealed with voidless-glass construction using an internal “Category I” metallurgical bond. They are also available in surface-mount packages see separate data sheet for 1N5802US thru 1N5806US. also offers numerous other rectifier products to meet higher and lower current ratings with various recovery time speed requirements including standard, fast and ultrafast in both through-hole and surface-mount packages.

FEATURES

• Popular JEDEC registered 1N5802 to 1N5806 series

• Voidless hermetically sealed glass package

• Extremely robust construction

• Triple-layer passivation

• Internal “Category I” Metallurgical bonds

• JAN, JANTX, JANTXV, and JANS available per MIL-PRF-19500/477

• Surface mount equivalents also available in a square end-cap MELF configuration with “US” suffix see separate data sheet for 1N5802US thru 1N5806US
