JANTX1N937B-1

DO-35 9V 0.5W1/2W

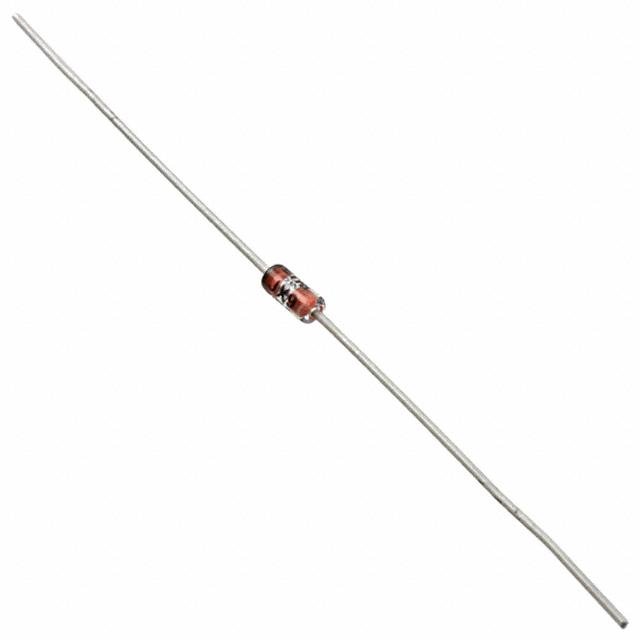

The popular 1N935B-1 through 1N938B-1 series of Zero-TC Temperature Compensated reference diodes provides a selection of 9.0 V nominal voltages and temperature coefficients to as low as 0.001 %/oC for minimal voltage change with temperature when operated at 7.5 mA.  These glass axial-leaded DO-35 reference diodes are also available in JAN, JANTX, JANTXV and JANS military qualifications.  For commercial applications it is also available as RoHS compliant.

艾睿:
When your circuit needs a diode to operate in the reverse breakdown region be sure to use a temperature compensated JANTX1N937B-1 zener diode from Microsemi. Its test current is 7.5 mA. Its maximum leakage current is 10 μA. Its maximum power dissipation is 500 mW. This zener device has a nominal voltage of 9 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 175 °C.

Chip1Stop:
Diode Zener Single 9V 5% 500mW 2-Pin DO-35

Verical:
Zener Diode Single 9V 5% 20Ohm 500mW 2-Pin DO-35 Bag
