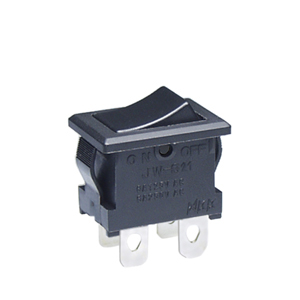

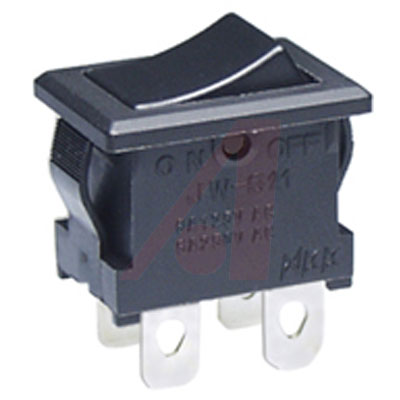

NKK SWITCHES JWS21RAA 翘板开关, 发光, 不发光, DPST, 开-无-关, 黑色, 面板, 10 A
The JWS series Internationally Approved Rocker Switch constructed for dust resistance with interior cover of polyamide between actuator and contact area. The terminals are moulded into lock out flux, dust and other contaminants. It is small size well suited for telecommunication, measuring, automation and consumer applications.
- .
- UL94V-0 Flammability rating
- .
- Rocker caps and housing available in a variety of colours
- .
- Protective barrier available to prevent accidental actuation
- .
- Easy and crisp actuation
- .
- Outer case of heat resistant resin
触点电镀 Silver
接触器类型 Rocker
额定电压AC 250 V
额定电流 6 A
绝缘电阻 500 MΩ
排数 2
触点类型 DPST
易燃性等级 UL 94 V-0
接触电阻 10 mΩ
额定电流Max 10A @250VAC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 125 VAC
接触电阻Max 10 mΩ
安装方式 Lug, PCB
长度 21 mm
宽度 15 mm
高度 25.7 mm
外壳颜色 Black
颜色 Black
触点材质 Silver
材质 Polyamide PA
工作温度 25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, Consumer Electronics, Industrial, 通信与网络, Automation & Process Control, 自动化与过程控制, Communications & Networking, 工业, 消费电子产品, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
