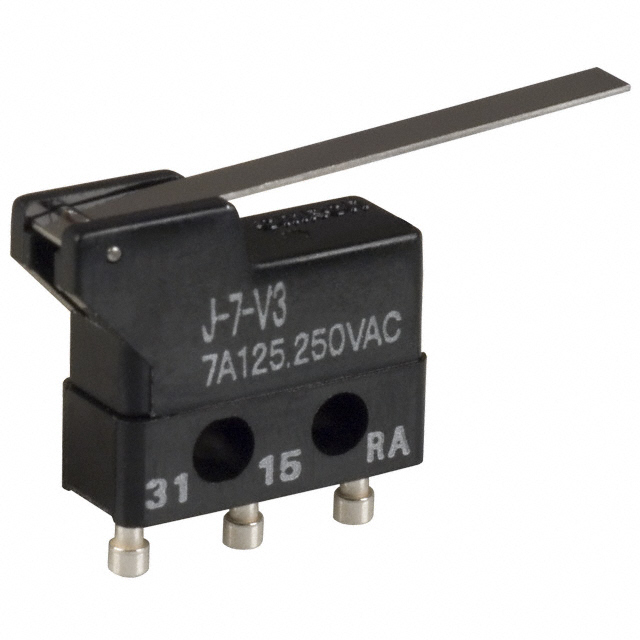

OMRON ELECTRONIC COMPONENTS J-7-V3 微动开关, J系列, SPDT, 焊接, 7 A, 250 VAC, 250 VDC
The J series ultra subminiature snap-action Basic Switch allows large-capacity switching 7A at 250VAC in spite of its small size. Particularly suitable as control switches for applications where there are restrictions on installation space and weight. Pin plunger, short hinge lever, short hinge roller lever, hinge roller lever, hinge lever and long hinge lever actuator available.
- .
- Gold-plated silver alloy contact
- .
- 0.35mm Gap
- .
- IP40 Protection rating
触点电镀 Gold
接触器类型 Straight Lever
额定电压AC 250 V
额定电流 7 A
触点类型 SPDT
额定电流Max 7A @250VAC
工作温度Max 80 ℃
工作温度Min -10 ℃
额定电压 125 VAC
安装方式 Chassis
封装 -
长度 14.7 mm
宽度 5.1 mm
高度 16.3 mm
封装 -
触点材质 Silver
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536507000
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
J-7-V3 Omron 欧姆龙 | 当前型号 | 当前型号 |
F4T7Y1 伯吉斯 | 类似代替 | J-7-V3和F4T7Y1的区别 |
