开关电源 48V 1.1A

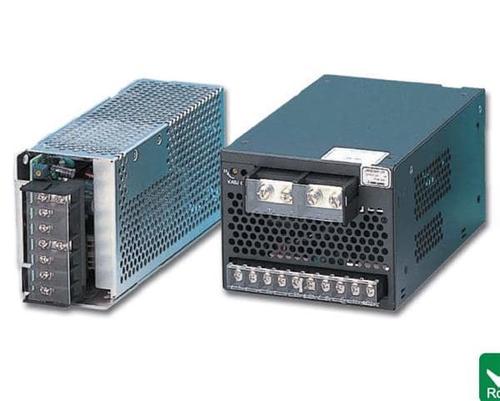

JWS Series Single Output Industrial Power Supplies
**Features:**
* 5 Year Warranty
* Power factor Corrected
* Approved to VDE0160 Machinery Directive
* Universal Input 85 - 265VAC
* Level B EMI
**Key Market Segments & Applications:**
* Factory Automation Process Control, NC-Machining, Automotive,
* Packaging Equipment, Materials Handling, Chemical Processing, Robots
* Test & Measurement Burn-in & Test, Automated Test, Instrumentation, Measurement, Detection
额定功率 50 W
输出接口数 1
输出电压 48 V
输出电流 1.1 A
隔离电压 3 kV
输入电压DC Max 330 V
输入电压DC Min 120 V
输入电压AC Max 265 V
输入电压AC Min 85 V
输出电流Max 1.1 A
工作温度Max 60 ℃
工作温度Min -10 ℃
输入电压 85VAC ~ 265VAC
安装方式 Chassis
引脚数 5
长度 5.75 in
宽度 3.38 in
高度 0.5 in
工作温度 -10℃ ~ 60℃
产品生命周期 Obsolete
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
