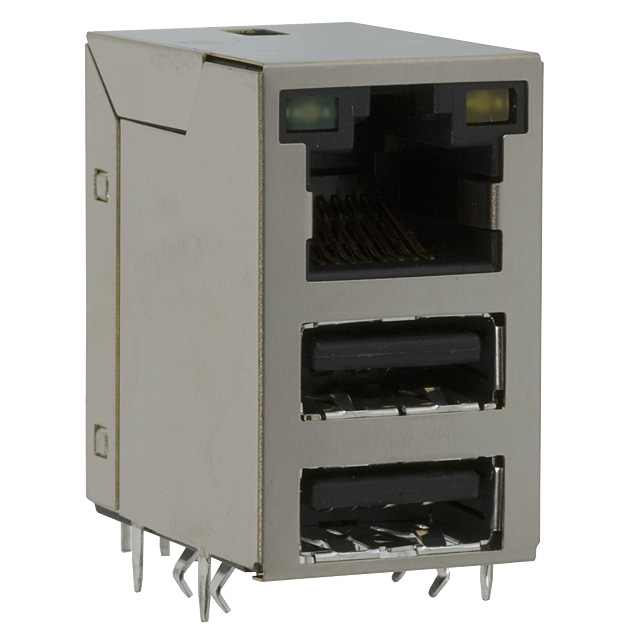

JW0-0009NL

Conn RJ-45/Dual USB F/F/F 10/4/4POS Solder RA Thru-Hole 22 Terminal 3Port Tray

Properly interface audio to your circuit design by using this rj-45/dual usb interface connector developed by Pulse. This F/F/F connector"s 10 / 4/4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This connector has 3 ports. JW0-0009NL is housed in thermoplastic. The component will be shipped in tray format. This product is 18.82 mm long, 31 mm tall and 27.43 mm deep. This interface connector has a minimum operating temperature of 0 °C and a maximum of 70 °C. Its 22 terminals use the solder termination method.
