JK0-0016

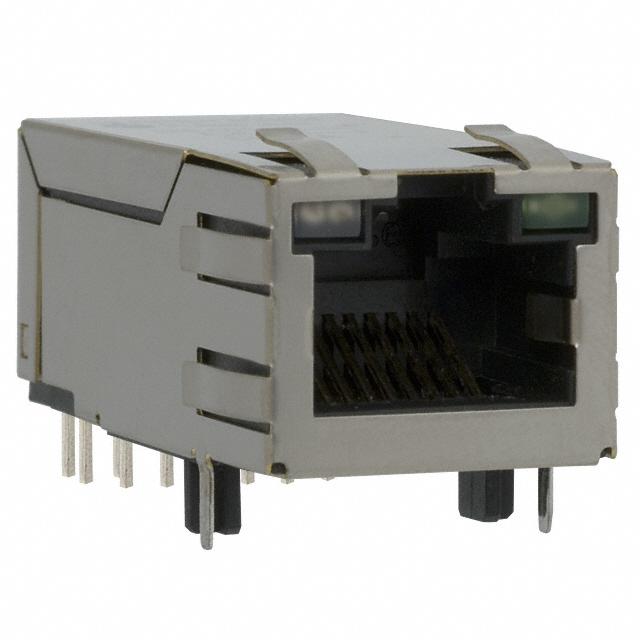

Conn RJ-45F 12POS 2.03mm Solder RA Thru-Hole 16 Terminal 1Port Cat 5/Cat 6

Description:

10/100/1000 Base-T RJ45 single port 1x1 Tab-UP with or without LEDs integrated magnetics connector ICM, designed to support applications, such as Network Interface Cards NIC, LAN-on-Motherboard LOM, and PC applications.

Features and Benefits:

■ RoHS-5 peak wave solder temperature rating 235°C

■ RoHS-6 peak wave solder temperature rating 260°C

■ Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP

Electrical Performance Summary:

■ Meets IEEE 802.3 specification

■ 350µH minimum OCL with 8mA bias current

■ High performance for maximum EMI suppression
