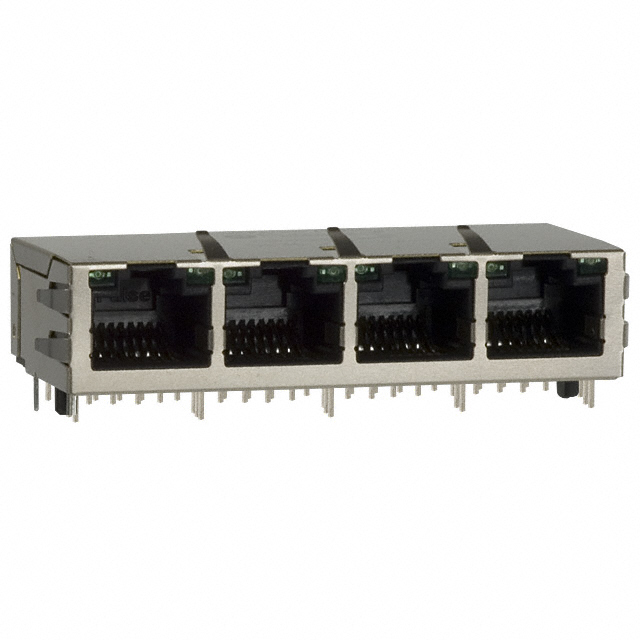

JG0-0025

CONN MAGJACK 4Port 1000 BASE-T

Description:

10/100/1000 Base-T RJ45 1xN Tab-UP Integrated Connector Module ICM with or without LEDs, designed to support such applications as: SOHO ADSL modems, LAN-on-Motherboard LOM, Hub and Switches.

Features and Benefits:

RoHS-5 peak wave solder temperature rating 235°C

RoHS-6 peak wave solder temperature rating 260°C

1xN Tab-UP 10-pin RJ45 with internal magnetics

Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP

Electrical Performance Summary:

Meets IEEE 802.3 specification

350µH minimum OCL with 8mA bias current

High performance for maximum EMI suppression
