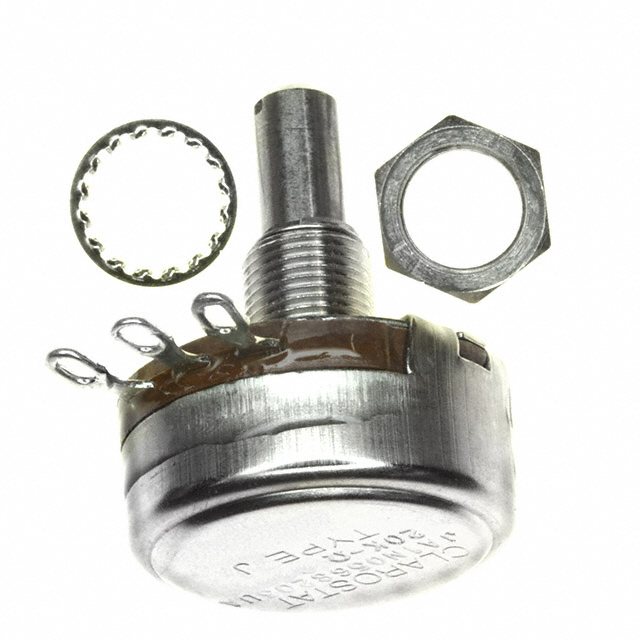

HONEYWELL JA1N056S203UA 旋转电位器, 碳, JA1N系列, 20 kohm, 线性, 1 转, 2 W, 面板
2.25 W, Solder Lug Terminals, Carbon Composition Potentiometers
Type J hot-molded carbon composition potentiometers are used in industrial and military applications for reliable, dependable and exceptional service requirements. JA1N Series has 3/8" bushing length with 1/4" dia., 7/8" long slotted shaft. The cover is dust and corrosion resistant. Made of non-magnetic material. Coated terminals.- .
- * Tolerance:** 10%, 1 meg and over: 20% linear taper. 2 watts. 100,000 rotations cycle life. Supplied with locating pin and hardware.
Plain, slotted flatted shaft.
额定电压DC 500 V
容差 ±10 %
额定功率 2.25 W
电阻 20 kΩ
阻值偏差 ±10 %
工作温度Max 120 ℃
工作温度Min -55 ℃
额定电压 500 V
安装方式 Solder
封装 Round - 1.156" Dia x 0.625" H 29.36mm x 15.88mm
高度 36.91 mm
封装 Round - 1.156" Dia x 0.625" H 29.36mm x 15.88mm
工作温度 -55℃ ~ 120℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
JA1N056S203UA Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
53C320K 霍尼韦尔 | 类似代替 | JA1N056S203UA和53C320K的区别 |
RV4NAYSD203A 霍尼韦尔 | 功能相似 | JA1N056S203UA和RV4NAYSD203A的区别 |
501-0011 NTE Electronics | 功能相似 | JA1N056S203UA和501-0011的区别 |
