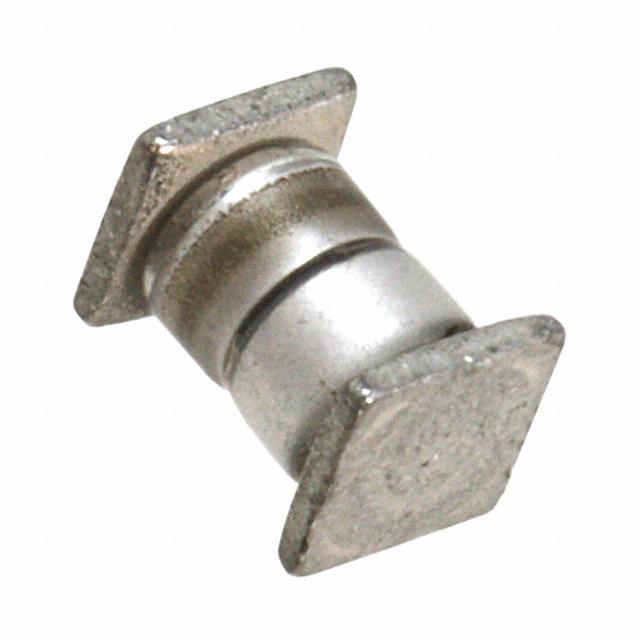

JANTX1N6465US

E-MELF 24V 500W

This surface mount series of 500 watt voidless hermetically sealed unidirectional Transient Voltage Suppressors TVS are military qualified to MIL-PRF-19500/551 and are ideal for high-reliability applications where a failure cannot be tolerated. Working peak "Standoff" voltages are available from 5.0 to 51.6 volts. They are very robust, using a hard glass casing and internal Category 1 metallurgical bonds. These devices are also available in axial-leaded packages for thru-hole mounting.

艾睿:
This JANTX1N6465US TVS diode from Microsemi is a must-have if your electronic equipment may be exposed to overvoltage conditions. Its peak pulse power dissipation is 500 W. Its test current is 2 mA. This device&s;s maximum clamping voltage is 41.4 V and minimum breakdown voltage is 27 V. Its maximum leakage current is 50 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C.

Verical:
TVS Diode Single Uni-Dir 24V 500W 2-Pin E-MELF Bag
