JCJ1048S2V5概述

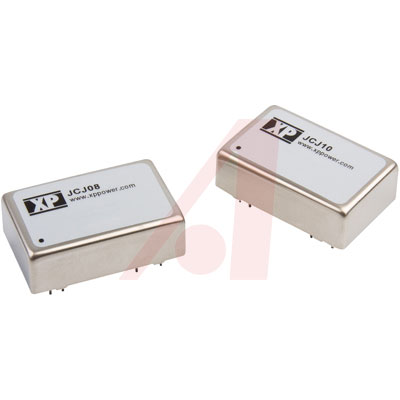

XP POWER JCJ1048S2V5 Isolated Board Mount DC-DC Converter, 2:1Input, Fixed, 1 Output, 36V, 75V, 10W, 2.5V
10 Watt DC/DC converter in an industry standard DIP-24 metal case with a wide 2:1 input range and continuous short circuit protection. This robust, high reliability, industrial grade product is suitable for a wide range of applications.
- .
- 2:1 Input Range
- .
- DIP-24 Metal Package
- .
- 1500 VDC Isolation
- .
- Efficiency up to 90%
- .
- Continuous Short Circuit Protection
- .
- -40°C to 100°C Operating Temperature
JCJ1048S2V5中文资料参数规格
技术参数
电源电压DC 48.0 V
额定功率 10 W
输出接口数 1
输入电压DC 36.0V ~ 75.0V
输出电压 2.5 V
输出电流 3.00 A
输出功率 10 W
隔离电压 1.5 kV
输入电压Max 75 V
输入电压Min 36 V
输入电压DC Max 75 V
输入电压DC Min 36 v
输出电流Max 3 A
输出功率Max 10 W
输入电压 36VDC ~ 75VDC
封装参数
安装方式 Through Hole
封装 DIP-11
外形尺寸
宽度 20.32 mm
高度 10.16 mm
封装 DIP-11
物理参数
重量 20.0 g
工作温度 -40℃ ~ 100℃
其他
产品生命周期 Active
制造应用 Industrial, ITE（商业）
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
