开关

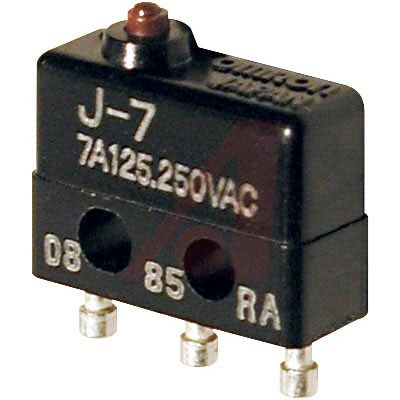

** Subminiature Models Capable of Large-Capacity Loads**
* Snap-Action Switch Allows Large-Capacity Switching 7 A at 250 VAC in Spite of Its Small Size 8.9 × 12.7 × 5.1 mm
* Particularly Suitable as Control Switches for Applications Where There Are Restrictions on Installation Space and Weight
* Easy Positioning, as the Pin Plunger Is Located in Alignment with the Center Line of One of the Two Mounting Holes
欧时:
SWITCH, PIN PLUNGER,7A
立创商城:
开关
艾睿:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Turret 7A 250VAC 250VDC 1.37N Screw Mount
Allied Electronics:
SWITCH, BASIC, ULTRA SUBMINIATURE, PIN PLUNGER, 7A
Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Turret 7A 250VAC 250VDC 1.37N Screw Mount
Verical:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Turret 7A 250VAC 250VDC 1.37N Screw Mount
MASTER:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 7A 250VAC 1.37N Screw Mount Turret
Online Components:
Switch Snap Action N.O./N.C. SPDT Pin Plunger Turret 7A 250VAC 250VDC 1.37N Screw Mount
Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Pin Plunger 7A 250VAC 1.37N Screw Mount Turret
触点电镀 Gold
接触器类型 Pin Plunger
额定电流 7 A
触点类型 SPDT
额定电流Max 7A @250VAC
工作温度Max 80 ℃
工作温度Min -10 ℃
额定电压 125 VAC
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Chassis
封装 -
长度 12.7 mm
宽度 5.1 mm
高度 13.8 mm
封装 -
触点材质 Silver Alloy
工作温度 -10℃ ~ 80℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536507000
