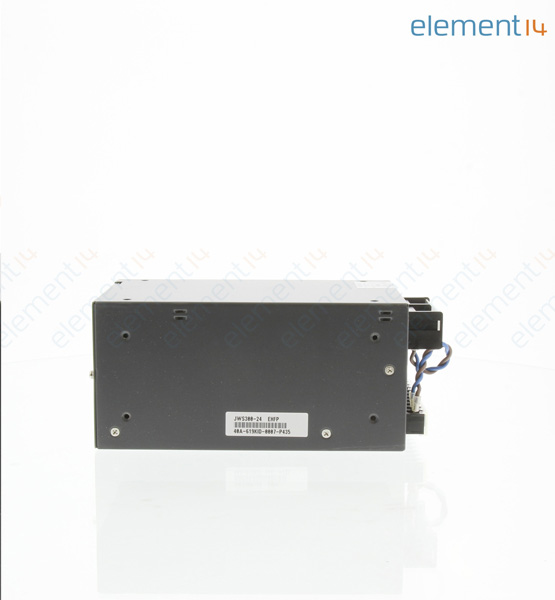

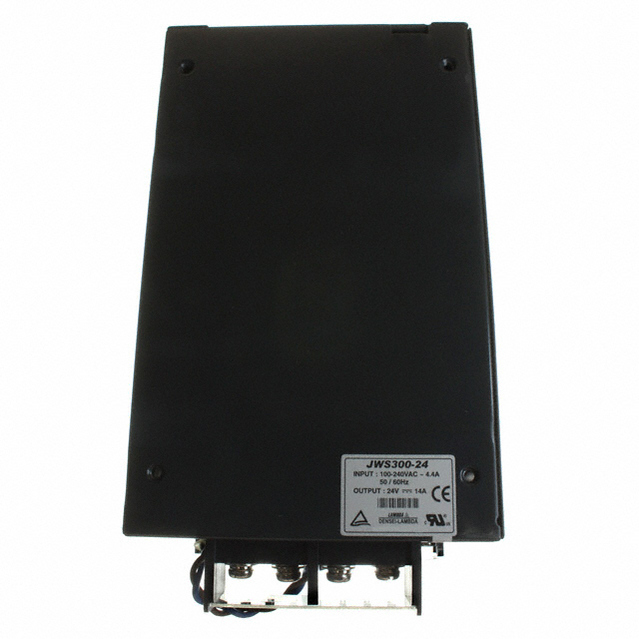

TDK LAMBDA JWS30024 AC-DC Open Frame Power Supply, Industrial, Adjustable, Fixed, 1 Output, 85V, 265V, 336W, 24V
Your electronic devices will need this AC to DC power supply from -Lambda to convert alternating currents into useful direct currents to operate. It has a voltage of 24 V. This part"s single output can handle a current up to 14 A.
得捷:
AC/DC CONVERTER 24V 300W
艾睿:
Your electronic devices will need this JWS30024 AC to DC power supply from TDK-Lambda to convert alternating currents into useful direct currents to operate. It has a voltage of 24 V. This part&s;s single output can handle a current up to 14 A.
Verical:
AC/DC Power Supply Single-OUT 24V 14A 14-Pin
电源电压DC 264 V
额定功率 300 W
输出接口数 1
输出电压 24 V
输出电流 14 A
输出功率 300 W
隔离电压 3 kV
输入电压DC Max 330 V
输入电压DC Min 120 V
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Max 14 A
输出功率Max 336 W
额定功率Max 300 W
工作温度Max 60 ℃
工作温度Min -10 ℃
输入电压AC 85V ~ 265V
输入电压 85VAC ~ 265VAC
安装方式 Chassis
引脚数 14
长度 190 mm
宽度 92.0 mm
高度 92 mm
工作温度 -10℃ ~ 65℃
产品生命周期 Obsolete
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
JWS30024 TDK 东电化 | 当前型号 | 当前型号 |
HWS300-24 东电化 | 功能相似 | JWS30024和HWS300-24的区别 |
