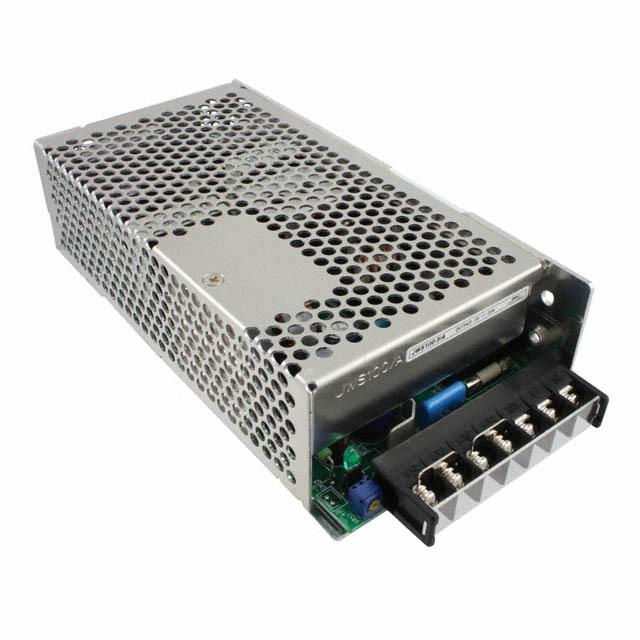

TDK LAMBDA JWS10024/A AC-DC Enclosed Power Supply, Industrial, Adjustable, Fixed, 1Outputs, 85V, 265V, 108W, 24V
封闭式 AC DC 转换器 1 输出 24V - - - 4.5A 85 ~ 265 VAC 输入
得捷:
AC/DC CONVERTER 24V 100W
艾睿:
This JWS10024/A AC to DC power supply from TDK-Lambda converts an alternating current source to a direct current supply. It has a voltage of 24 V. This part&s;s single output can handle a current up to 4.5 A. This part has a temperature range of -10 °C to 50 °C.
Allied Electronics:
Power Supply; AC-DC; 24V@4.5A; 85-265V In; Enclosed; Panel Mount; PFC; JWS Series
Verical:
AC/DC Power Supply Single-OUT 24V 4.5A
电源电压DC 264 V
额定功率 100 W
输出接口数 1
输出电压 24 V
输出电流 4.5 A
输出功率 100 W
隔离电压 3 kV
输入电压DC Max 330 V
输入电压DC Min 120 V
输入电压AC Max 265 v
输入电压AC Min 85 v
输出电流Max 4.5 A
输出功率Max 108 W
额定功率Max 100 W
工作温度Max 50 ℃
工作温度Min -10 ℃
输入电压AC 85V ~ 265V
输入电压 85VAC ~ 265VAC
安装方式 Chassis
长度 188 mm
宽度 92.0 mm
高度 50.04 mm
工作温度 -10℃ ~ 60℃
产品生命周期 Obsolete
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
