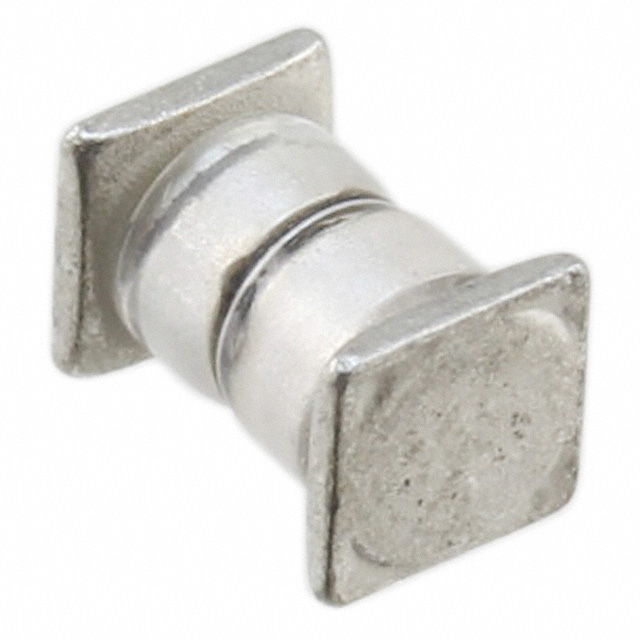

JANTX1N6463US

JANTX 系列 13.6 V 500 W 单向 瞬态电压抑制器 - SQ-MELF

This surface mount series of 500 watt voidless hermetically sealed unidirectional Transient Voltage Suppressors TVS are military qualified to MIL-PRF-19500/551 and are ideal for high-reliability applications where a failure cannot be tolerated. Working peak "Standoff" voltages are available from 5.0 to 51.6 volts. They are very robust, using a hard glass casing and internal Category 1 metallurgical bonds. These devices are also available in axial-leaded packages for thru-hole mounting.

立创商城:
Vrwm:12V 500W

艾睿:
Take the extra step in your circuitry by implementing surge protection with this JANTX1N6463US TVS diode from Microsemi. Its test current is 5 mA. Its peak pulse power dissipation is 500 W. This device&s;s maximum clamping voltage is 22.6 V and minimum breakdown voltage is 13.6 V. Its maximum leakage current is 500 μA. This TVS diode has an operating temperature range of -55 °C to 175 °C.

Verical:
TVS Diode Single Uni-Dir 12V 500W 2-Pin E-MELF Bag
