JAN1N6468

JAN1N6468概述

JAN 系列 54 V 500 W 通孔 单向 瞬态电压抑制器

This series of 500 watt voidless hermetically sealed unidirectional Transient Voltage Suppressors TVS are military qualified to MIL-PRF-19500/551 and are ideal for high-reliability applications where a failure cannot be tolerated. Working peak "Standoff" voltages are available from 5.0 to 51.6 volts. They are very robust, using a hard glass casing and internal Category 1 metallurgical bonds. These devices are also available in a surface mount MELF package configuration.


艾睿:
Diode TVS Single Uni-Dir 51.6V 500W 2-Pin Case E Bag


JAN1N6468中文资料参数规格
技术参数

正向电压 1.5 V

耗散功率 500 W

钳位电压 78.5 V

测试电流 1 mA

脉冲峰值功率 500 W

最小反向击穿电压 54 V

工作温度Max 175 ℃

工作温度Min -55 ℃

封装参数

安装方式 Through Hole

引脚数 2

封装 B

外形尺寸

封装 B

物理参数

工作温度 -55℃ ~ 175℃ TJ

其他

产品生命周期 Active

包装方式 Bag

制造应用 通用

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

JAN1N6468引脚图与封装图

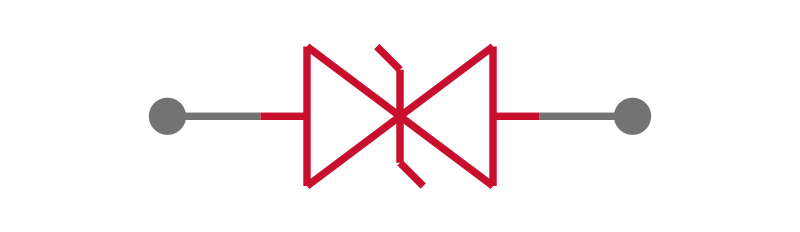

JAN1N6468引脚图
JAN1N6468封装图

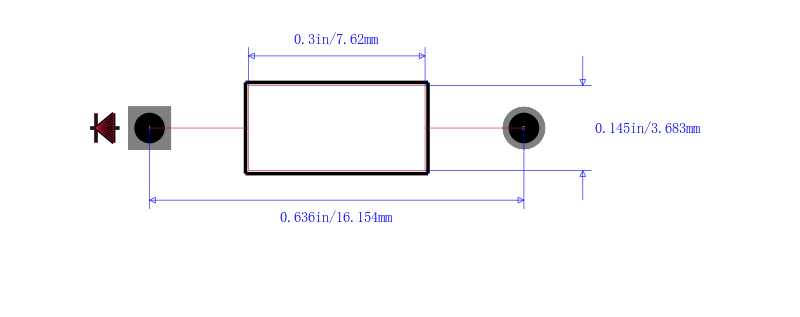

JAN1N6468封装焊盘图
在线购买JAN1N6468
型号: JAN1N6468
描述:JAN 系列 54 V 500 W 通孔 单向 瞬态电压抑制器
替代型号JAN1N6468
型号/品牌 代替类型 替代型号对比

JAN1N6468

Microsemi 美高森美

当前型号

当前型号

1N6468

美高森美

完全替代

JAN1N6468和1N6468的区别

P4KE62-G

上华科技

功能相似

JAN1N6468和P4KE62-G的区别

P5KE54A

Digitron

功能相似

JAN1N6468和P5KE54A的区别
