JAN1N6470US

JAN1N6470US概述

G-MELF 6V 1500W

This surface mount series of industry recognized voidless-hermetically-sealed Unidirectional Transient Voltage Suppressor TVS designs is military qualified to MIL-PRF-19500/552 and are ideal for high-reliability applications where a failure cannot be tolerated. They provide a Working Peak "Standoff" Voltage selection from 5.0 to 51.6 Volts with 1500 W ratings. They are very robust in hard-glass construction and also use an internal metallurgical bond identified as Category I for high reliability applications. The 1500 W series is military qualified to MIL-PRF-19500/552. These devices are also available in axial-leaded packages for thru-hole mounting by deleting the ?US? suffix see separate data sheet for 1N6469 thru 1N6476A. also offers numerous other TVS products to meet higher and lower peak pulse power and voltage ratings in both through-hole and surface-mount packages.

JAN1N6470US中文资料参数规格
技术参数

最大反向电压(Vrrm) 6V

脉冲峰值功率 1500 W

最小反向击穿电压 6.5 V

封装参数

安装方式 Surface Mount

封装 G-MELF

外形尺寸

封装 G-MELF

物理参数

工作温度 -55℃ ~ 175℃ TJ

其他

产品生命周期 Active

制造应用 通用

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

JAN1N6470US引脚图与封装图

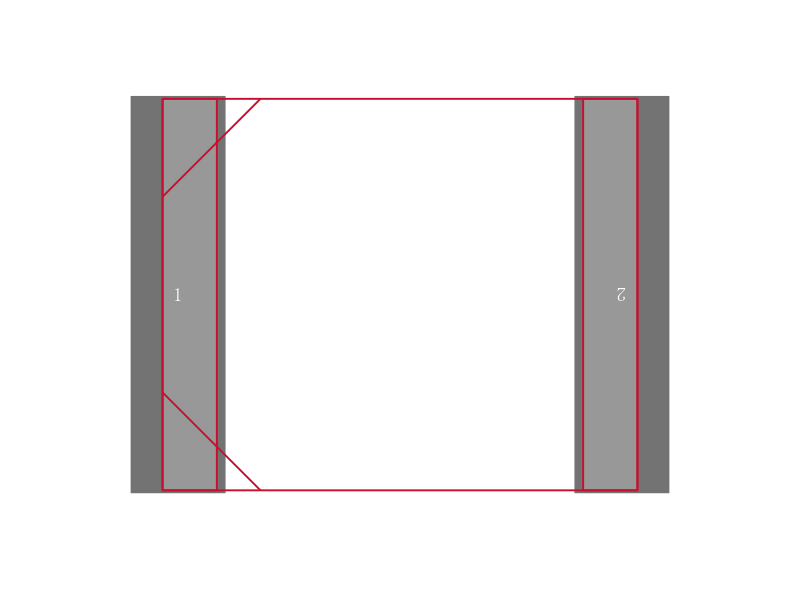

JAN1N6470US引脚图

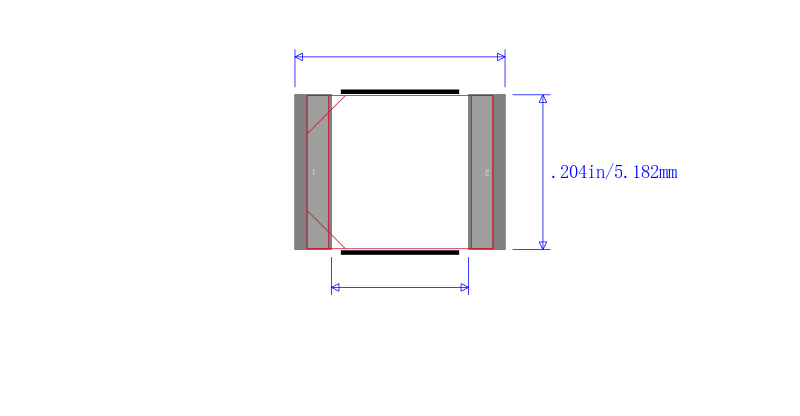

JAN1N6470US封装图
JAN1N6470US封装焊盘图
在线购买JAN1N6470US
型号: JAN1N6470US
描述:G-MELF 6V 1500W
替代型号JAN1N6470US
型号/品牌 代替类型 替代型号对比

JAN1N6470US

Microsemi 美高森美

当前型号

当前型号

JANTXV1N6470US

美高森美

完全替代

JAN1N6470US和JANTXV1N6470US的区别

1N6470US

美高森美

完全替代

JAN1N6470US和1N6470US的区别

JANTX1N6470US

美高森美

类似代替

JAN1N6470US和JANTX1N6470US的区别
