600V 2A 袋装

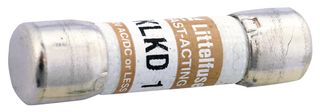

Be protected by adding a midget fuse developed by . This device has a current rating of 2. It has 2 terminals. The KLKD002.T fuse has a cartridge termination style. This product is 38.1 mm long with a diameter of 10.31 mm. The maximum AC voltage rating is 600 VAC and the maximum DC voltage rating is 600 VDC.
额定电压DC 600 V
额定电压AC 600 V
额定电流 2 A
电阻 0.124 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 600 V
额定电压DC Max 600 V
额定电压AC Max 600 V
引脚数 2
封装 Non-Standard
长度 38.1 mm
封装 Non-Standard
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KLKD002.T Littelfuse 力特 | 当前型号 | 当前型号 |
KLM-2 库柏 | 功能相似 | KLKD002.T和KLM-2的区别 |
