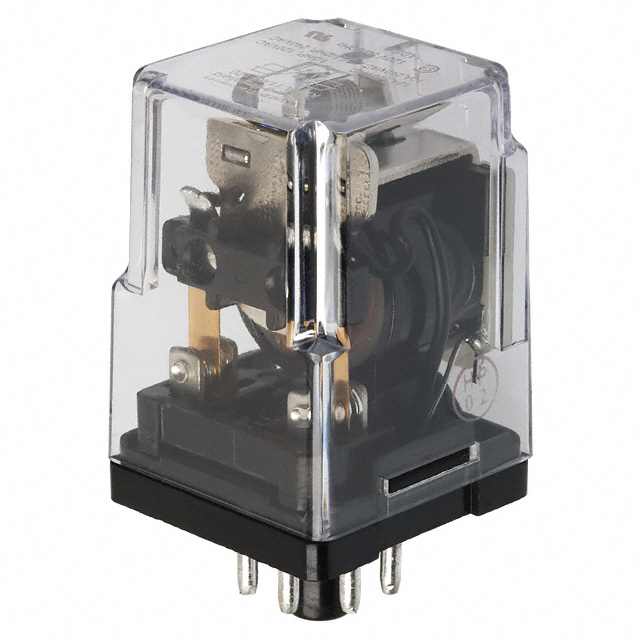

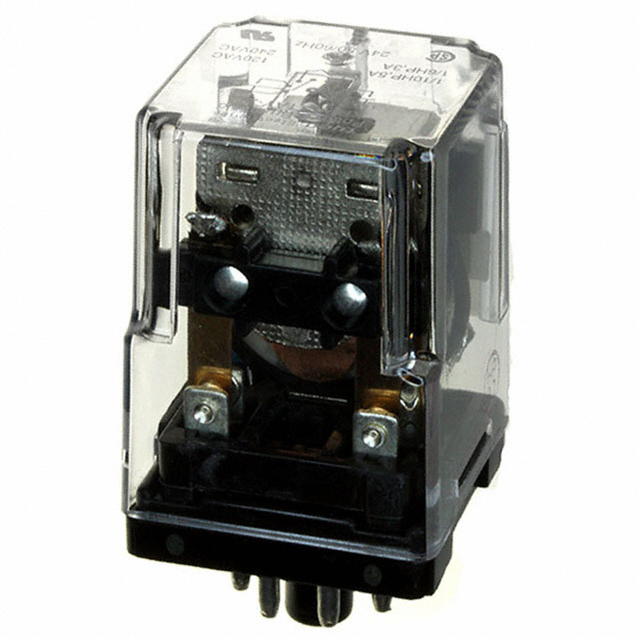

Electromechanical Relay 240VAC 9.11KΩ 5A DPDT 35.71mm 35.71mm 50.8mm Socket General Purpose Relay
The KRPA series panel plug-in General Purpose Relay with contact arrangements of 1/2/3-form-C CO and 5 to 10A current capability.
- .
- Octal type termination for quick installation
- .
- Indicator lamp available on certain models
艾睿:
Power Relay 240VAC 5A DPDT35.71x35.7x50.8mm Socket
Allied Electronics:
GENERAL PURPOSE RELAY; DPDT; 5A; 240VAC; 8 PIN OCTAL STYLE PLUG
Chip1Stop:
Electromechanical Relay 240VAC 9.11KOhm 5A DPDT 35.71mm 35.71mm 50.8mm Socket General Purpose Relay
Verical:
Electromechanical Relay 240VAC 9.11KOhm 5A DPDT 35.71mm 35.71mm 50.8mm Socket General Purpose Relay
MASTER:
Electromechanical Relay 240VAC 9.11KOhm 5A DPDT35.71x35.71x50.8mm Socket General Purpose Relay
Online Components:
Electromechanical Relay 240VAC 9.11KOhm 5A DPDT35.71x35.71x50.8mm Socket General Purpose Relay
ICbanQ:
General Purpose / Industrial Relays DPDT 5A 240VAC
Electro Sonic:
Power Relay 240VAC 10A DPDT35.7x35.7x50.8mm Socket
额定电压AC 120 V
额定电流 5 A
触点类型 DPDT
功耗 2 VA
触点额定电流 5 A
线圈电压 240 VAC
线圈电流 8.75 mA
线圈电压AC 240 V
线圈电阻 9.11 kΩ
载流 5.00 A
额定电流Max 5 A
开关电流Max 10 A
工作温度Max 55 ℃
工作温度Min -45 ℃
额定电压AC Max 120 V
安装方式 Plug In
引脚数 8
长度 48.8 mm
宽度 37.3 mm
高度 34.9 mm
触点材质 Silver
工作温度 -45℃ ~ 55℃
产品生命周期 Active
包装方式 Bulk
制造应用 Lighting, Industrial
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536490050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KRPA-11AY-240 TE Connectivity 泰科 | 当前型号 | 当前型号 |
KRPA-11AG-240 泰科 | 类似代替 | KRPA-11AY-240和KRPA-11AG-240的区别 |
MKS2PI AC24 欧姆龙 | 功能相似 | KRPA-11AY-240和MKS2PI AC24的区别 |
MKS2PI DC110 欧姆龙 | 功能相似 | KRPA-11AY-240和MKS2PI DC110的区别 |
