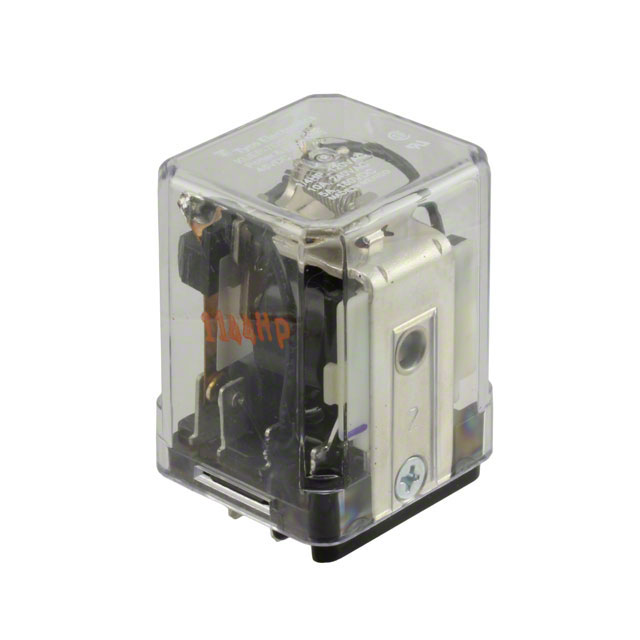

TE CONNECTIVITY / POTTER & BRUMFIELD KUEP-7D15-48 功率继电器, 48VDC
Electromechanical Relay 48VDC 1.25KOhm 10A DPST-NO 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Product Highlights
KUEP Series
Contact Arrangement = 2 Form A, DPST-NO, 2 N/O
Contact Current Rating = 10 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
e络盟:
功率继电器, 48VDC
艾睿:
Electromechanical Relay 48VDC 1.25KOhm 10A DPST-NO 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Chip1Stop:
Electromechanical Relay 48VDC 1.25KOhm 10A DPST-NO 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
Verical:
Electromechanical Relay 48VDC 1.25KOhm 10A DPST-NO 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
MASTER:
Electromechanical Relay 48VDC 1.25KOhm 10A DPST-NO38.89x35.71x55.55mm Plain Case Industrial Relay
Online Components:
Electromechanical Relay 48VDC 1.25KOhm 10A DPST-NO 38.89mm 35.71mm 55.55mm Plain Case Industrial Relay
ICbanQ:
General Purpose / Industrial Relays DPST-NO 10A 48VDC GEN PURPOSE RELAY
Electro Sonic:
Electromechanical Relay 48VDC 1.25KOhm 10A DPST-NO38.89x35.71x55.55mm Plain Case Industrial Relay
额定电压DC 28 V
额定电压AC 240 V
输入电压DC 48.0 V
触点类型 DPST-NO
功耗 1.85 W
触点额定电流 10 A
线圈电压 48 VDC
线圈电流 38.4 mA
线圈功率DC 1.80 W
线圈电阻 1.25 kΩ
载流 10.0 A
额定电流Max 10 A
线圈电压DC 48 V
开关电流Max 10 A
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压DC Max 28 V
额定电压AC Max 240 V
安装方式 Quick Connect
引脚数 6
长度 38.89 mm
宽度 35.7 mm
高度 55.55 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Not Applicable
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
