24VAC 10A 无锁存

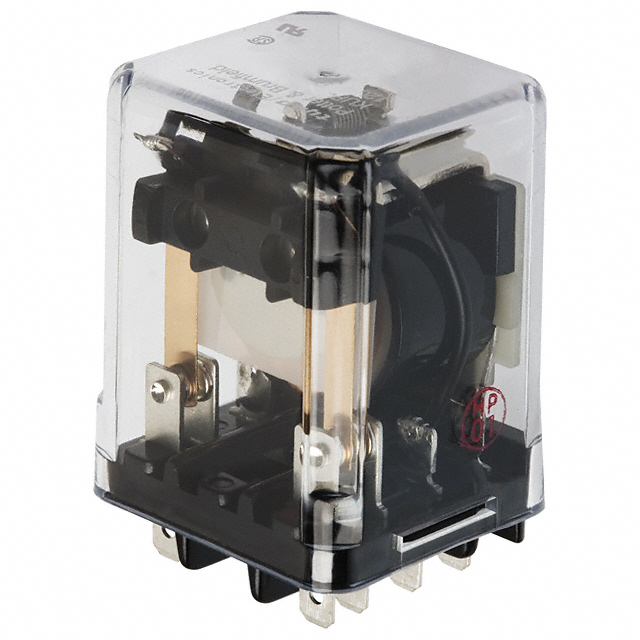

Electromechanical Relay 24VAC 72Ohm 10A 3PDT 38.89mm 35.71mm 55.55mm Socket Industrial Relay
Product Highlights
Relay Type = General Purpose
Relay Style = General
KUP Series
Contact Arrangement = 3 Form C, 3PDT, 3 C/O
Contact Current Rating = 10 Amps.
得捷:
RELAY GEN PURPOSE 3PDT 10A 24V
立创商城:
24VAC 10A 无锁存
贸泽:
General Purpose Relays 3PDT 10A 24VAC ENCLOSED RELAY
艾睿:
Electromechanical Relay 24VAC 72Ohm 10A 3PDT38.89x35.71x55.55mm Socket Industrial Relay
Chip1Stop:
Electromechanical Relay 24VAC 72Ohm 10A 3PDT 38.89mm 35.71mm 55.55mm Socket Industrial Relay
Verical:
Electromechanical Relay 24VAC 72Ohm 10A 3PDT 38.89mm 35.71mm 55.55mm Socket Industrial Relay
MASTER:
General Purpose Power Relay Over 2A
Online Components:
Power Relay
Electro Sonic:
General Purpose Power Relay Over 2A
额定电压DC 32 V
额定电压AC 240 V
触点类型 3PDT
功耗 2.7 VA
触点额定电流 10 A
线圈电压 24 VAC
线圈电流 115 mA
线圈电压AC 24 V
线圈电阻 72 Ω
额定电流Max 10 A
线圈功率 2.8 VA
开关电流Max 10 A
工作温度Max 45 ℃
工作温度Min -45 ℃
安装方式 Quick Connect
引脚数 11
封装 -
长度 38.9 mm
宽度 35.7 mm
高度 55.55 mm
封装 -
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 45℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
