KS 系列 单刀单掷 关-瞬时 单刀 钥匙开关

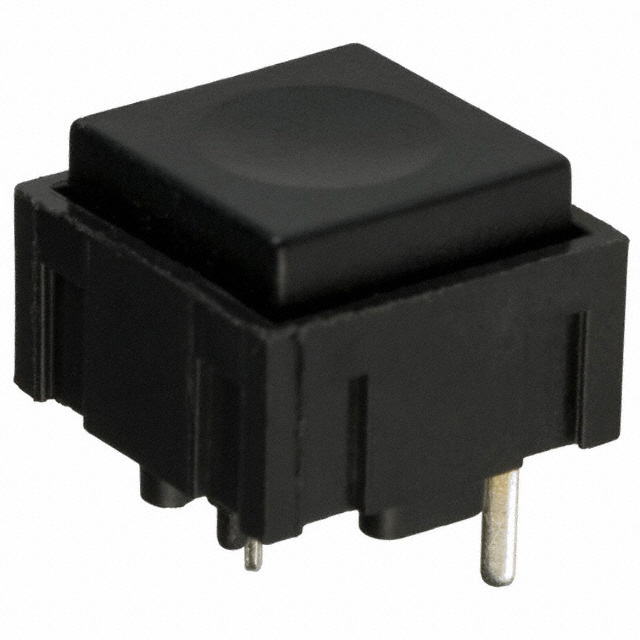

Looking for a secure tool that can power your circuit on and off? The single pole key switch, developed by C&K Components, is the solution. This square button actuator is 2.29 mm long and made from Acrylonitrile Butadiene Styrene. It has a SPST configuration. This part has a minimum operating temperature of -30 °C and a maximum of 65 °C. It has 2 terminals. The KS11R22CQD part has a PC pin termination style. This product is 12.32 mm long, 9.86 mm tall and 12.32 mm deep. The maximum AC voltage rating is 50 VAC and the maximum DC voltage rating is 50 VDC.
额定电压DC 50 V
额定电压AC 50 V
额定电流 25mA AC, 25mA DC
绝缘电阻 10 GΩ
额定电流Max 0.025A @50VAC, 50VDC
工作温度Max 65 ℃
工作温度Min -30 ℃
额定电压DC Max 50 V
额定电压AC Max 50 V
接触电阻Max <100 mΩ
安装方式 PCB
封装 Through Hole
长度 12.4 mm
宽度 12.4 mm
高度 7.57 mm
封装 Through Hole
颜色 Black
触点材质 Stainless Steel
工作温度 -30℃ ~ 65℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KS11R22CQD C&K Components | 当前型号 | 当前型号 |
KS11R21CQE C&K Components | 完全替代 | KS11R22CQD和KS11R21CQE的区别 |
KS11R23CQE C&K Components | 完全替代 | KS11R22CQD和KS11R23CQE的区别 |
