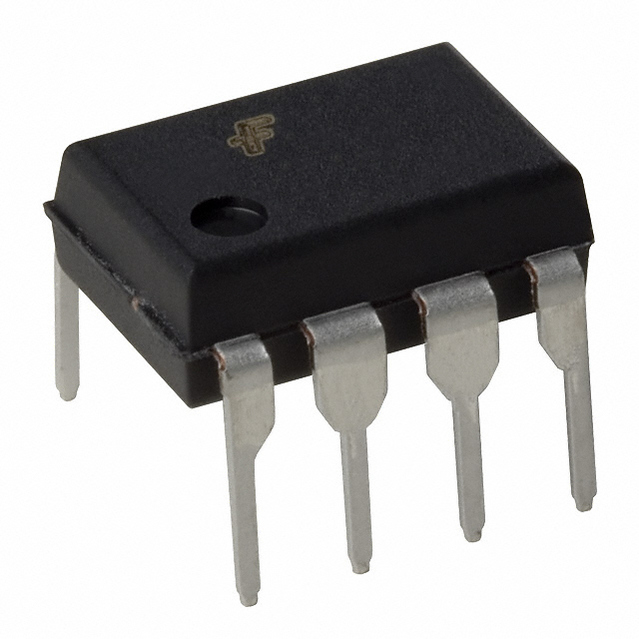

FAIRCHILD SEMICONDUCTOR KA331... 芯片, 电压/频率转换器, 100KHZ, 0.01%, 8-DIP
The is a Voltage to Frequency Converter provides the output pulse train at a frequency precisely proportional to the applied input voltage. The KA331 can operate at power supplies as low as 4.0V and be changed output frequency from 1Hz to 100kHz. It is ideally suited for use in simple low-cost circuit for analogue-to digital conversion, long term integration, linear frequency modulation or demodulation, frequency-to-voltage conversion and many other functions. This product is general usage and suitable for many different applications.
频率 100 kHz
额定功率 15 mW
输出电压 0.40 VDC
输出电流 136 µA
针脚数 8
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 40V
电源电压Max 40 V
电源电压Min 4 V
安装方式 Through Hole
引脚数 8
封装 DIP-8
长度 9.6 mm
宽度 6.4 mm
高度 3.4 mm
封装 DIP-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KA331 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
AD637JQ 亚德诺 | 功能相似 | KA331和AD637JQ的区别 |
AD536AJQ 亚德诺 | 功能相似 | KA331和AD536AJQ的区别 |
AD536AJDZ 亚德诺 | 功能相似 | KA331和AD536AJDZ的区别 |
