四通道运算放大器器 Quad Operational Amplifier
Description
The KA324 series consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible so long as the difference between the two supplies is 3 volts to 32 volts. Application areas include transducer amplifier, DC gain blocks and all the conventional OP Amp circuits which now can be easily implemented in single power supply systems.
Features
• Internally Frequency Compensated for Unity Gain
• Large DC Voltage Gain: 100dB
• Wide Power Supply Range:
KA224 / KA224A, KA324 / : 3V~32V or ±1.5 ~ 16V
KA2902: 3V~26V or ±1.5V ~ 13V
• Input Common Mode Voltage Range Includes Ground
• Large Output Voltage Swing: 0V to VCC -1.5V
• Power Drain Suitable for Battery Operation
输出电流 40mA @5V
供电电流 1 mA
电路数 4
通道数 4
耗散功率 1310 mW
共模抑制比 65 dB
输入补偿电压 1.5 mV
输入偏置电流 40 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1310 mW
共模抑制比Min 65dB ~ 70dB
电源电压Max 32 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 14

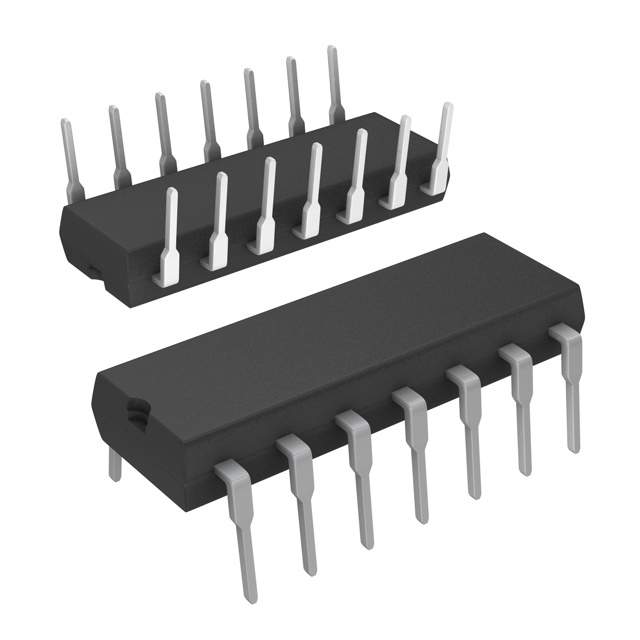

封装 DIP-14
长度 19.56 mm
宽度 6.6 mm
高度 3.56 mm
封装 DIP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
