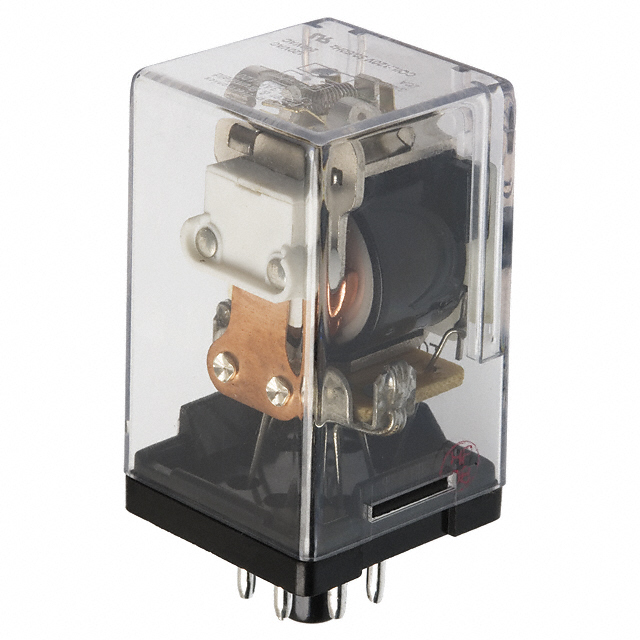

TE CONNECTIVITY / POTTER & BRUMFIELD KRP-3DH-24 功率继电器, 24VDC, SPST
通用 继电器 SPST-NO（DM）（1 Form X） 24VDC 线圈 可插
得捷:
RELAY GEN PURPOSE SPST 20A 24V
e络盟:
继电器, SPST-常开, 120VAC, 20A
艾睿:
Electromechanical Relay 24VDC 472Ohm 20A SPST-NO-DM 38.89x35.71x57.94mm Socket Plug-In Relay
Chip1Stop:
Electromechanical Relay 24VDC 472Ohm 20A SPST-NO-DM 38.89x35.71x57.94mm Socket General Purpose Relay
Verical:
Power Relay 24VDC 472Ohm 20A SPST-NO-DM38.89x35.71x57.94mm Socket Plug-In Relay
MASTER:
Power Relay 24VDC 472Ohm 20A SPST-NO-DM38.89x35.71x57.94mm Socket Plug-In Relay
Online Components:
Electromechanical Relay 24VDC 472Ohm 20A SPST-NO-DM38.89x35.71x57.94mm Socket Plug-In Relay
Electro Sonic:
Power Relay 24VDC 472Ohm 20A SPST-NO-DM38.89x35.71x57.94mm Socket Plug-In Relay
额定电压AC 120 V
输入电压DC 24.0 V
触点类型 SPST-NO
功耗 1.2 W
触点额定电流 20 A
线圈电压 24 VDC
线圈电流 51 mA
线圈功率DC 1.20 W
线圈电阻 472 Ω
载流 20.0 A
额定电流Max 20 A
线圈电压DC 24 V
线圈功率 1.25 W
工作温度Max 70 ℃
工作温度Min -45 ℃
额定电压AC Max 120 V
安装方式 Plug In
引脚数 8
长度 35.71 mm
宽度 35.71 mm
高度 57.94 mm
触点材质 Silver Cadmium Oxide
工作温度 -45℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410050
